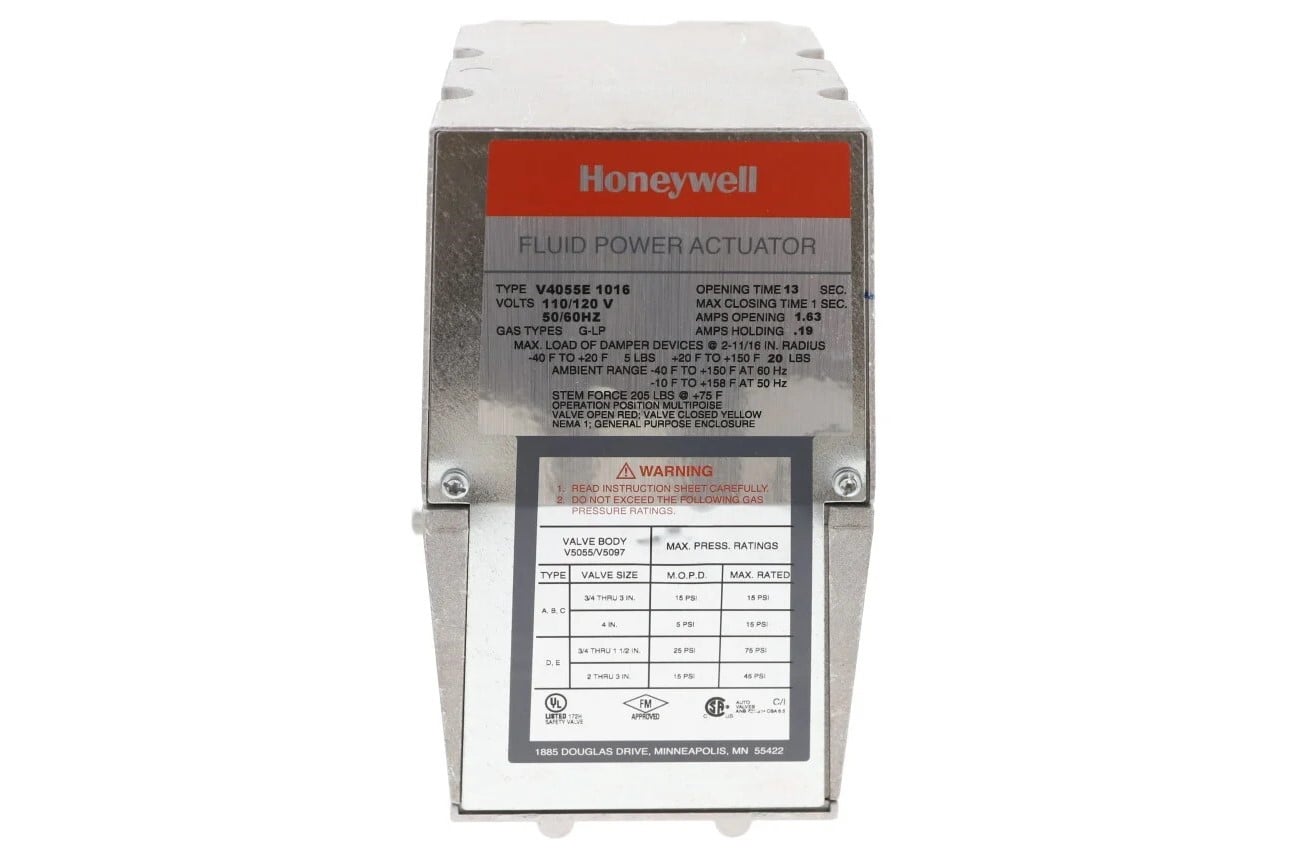

V4055E1016 Honeywell INDUSTRIAL Fluid Power Actuator

The Honeywell V4055E1016 Combustion valve actuator 120/60; 13 SEC OPNG TIME W/Damper Shaft.

V4055E1016 Honeywell INDUSTRIAL Fluid Power Actuator Datasheet

V4055E1016 Honeywell INDUSTRIAL Fluid Power Actuator Datasheet 2

Overview

The Honeywell V4055E1016 Industrial Fluid Power Actuator is a heavy-duty on/off actuator designed for use with Honeywell V5055 and V5097 series industrial gas valves. Engineered for combustion safety and fuel train applications, this actuator delivers reliable valve operation and precise gas flow control in commercial and industrial burner systems.

As part of the proven V4055 series, the V4055E1016 is built for smooth light-off performance, rapid closing, and consistent operation under demanding conditions. Its rugged construction and dependable actuation make it a critical component in systems requiring safe, repeatable gas shutoff control.

Key Features

• On/Off Actuation – Provides reliable open/close control of gas valves

• Designed for V5055 & V5097 Valves – Direct compatibility with Honeywell valve bodies

• Fast Closing Time – Closes in under 1 second for safety applications

• Controlled Opening Speed – Designed to ensure smooth burner light-off

• Visual Position Indicator – Displays valve open/closed status

• Industrial-Grade Construction – Built for long-term use in harsh environments

• Direct Mount Design – Attaches directly to valve bonnet

• Optional Proof-of-Closure Capability – Available depending on configuration

Specifications

• Manufacturer: Honeywell

• Model: V4055E1016

• Product Type: Fluid Power Gas Valve Actuator

• Operation: On/Off Actuator

• Voltage: Typically 120 VAC (confirm before ordering)

• Opening Time: Approximately 13–26 seconds (model dependent)

• Closing Time: Less than 1 second

• Maximum Operating Pressure: 5 PSI

• Mounting Type: Direct valve mounting (bonnet mount)

• Enclosure: Industrial-rated housing

• Temperature Range: Approximately -40°F to 150°F

• Compatibility: V5055 and V5097 series gas valves

Applications

The Honeywell V4055E1016 actuator is commonly used in:

• Industrial and commercial boilers

• Gas-fired furnaces and heaters

• Burner management systems

• Fuel train assemblies

• Process heating equipment

This actuator is essential for systems requiring safe, reliable actuation of industrial gas valves.
