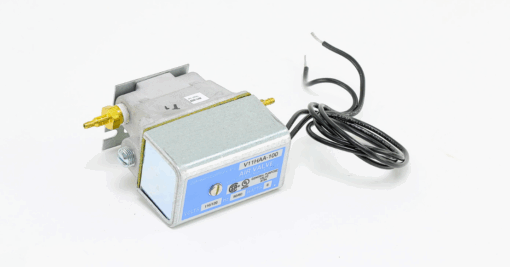

V11HAA-100 Johnson Controls Valve
$402.20
The Johnson Controls V11HAA-100 110/120Vac 3 Way Solenoid Air Valve with 1/4″ Barb Connection in Common Port and Normally Closed Port, 1/8″ NPT Connection in Normally Open Port
3 in stock
Overview
The Johnson Controls V11HAA-100 is a 110/120VAC, 3-way solenoid-operated air valve designed for directional pneumatic air control in HVAC systems and building automation applications. It serves as an operating device to direct supply air to pneumatic instruments based on an electrical circuit status and can be operated manually for testing.
Features
- Provides a positive air seal to prevent leakage
- Compact and lightweight design fits into small spaces
- Supports 360-degree mounting in any position
- Includes a manual operator for testing and checkout procedures
- Features monel screens in valve ports to stop foreign material entry
Specifications
- Supply Voltage: 110/120 VAC, 50/60 Hz (6 Watts)
- Connections: 1/4 inch Barb on Common and Normally Closed ports; 1/8 inch NPT on Normally Open port
- Pressure Range: 0 to 30 PSIG maximum rating; 0 to 25 PSIG operating pressure
- Flow Capacity: 1.5 CFM (2592 SCIM) at 15 PSIG supply
- Operating Temperature: 32 to 140°F (0 to 60°C)
- Construction: Die-cast aluminum valve body with monel screens
Applications
- Pneumatic HVAC control systems
- Damper and actuator air switching
- Building automation and DDC control panels
- Air pilot switching circuits
| Weight | 5 lbs |
|---|---|
| Dimensions | 4 × 5 × 3 in |
