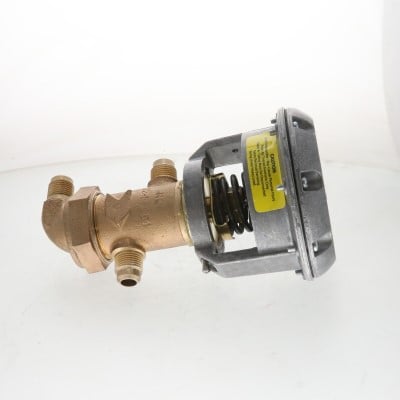

V-4440-1001 Johnson Controls Valve

Overview

The Johnson Controls V-4440-1001 is a three-way brass pneumatic water valve assembly designed to accurately regulate the flow of hot or cold water in small room air conditioning three- or four-pipe systems. Equipped with a factory-installed V-3000 exposed pneumatic actuator, it functions as both a switching and control valve to modulate fluid flow proportionally. It serves as a direct drop-in replacement for older V-4440-0001 models and includes a bottom elbow connector to simplify field installation.

Features

• Features a rugged brass and cast bronze body construction that resists corrosion
• Equipped with a factory-installed V-3000 exposed pneumatic actuator with a synthetic rubber diaphragm
• Contains two modulating plugs with replaceable composition discs designed for both hot and cold-water service
• Prevents fluid mixing as the lower inlet port is normally open and the upper inlet port is normally closed
• Allows the complete actuator assembly to be removed without disturbing the remaining valve piping
• Includes a 90-degree bottom elbow connection that can be rotated to any position for flexible installation

Specifications

• Brand: Johnson Controls
• Product Number: V-4440-1001
• Valve Type: Three-way pneumatic supply valve
• Body Material: Brass and cast bronze
• Connection Size: 1/2 inch S.A.E. 45-degree flared connections
• Spring Range: 4 to 12 PSI (28 to 84 kPa)
• Flow Coefficient: 1.4 Cv
• Temperature Range: -10 to 150 degrees F
• Compatible Media: Chilled water, hot water, and up to 50% glycol solutions

Applications

• Used in commercial HVAC pneumatic control systems
• Applied in hydronic heating and cooling systems
• Designed for small room air conditioning three- or four-pipe terminal units
• Suitable for low-flow terminal applications such as fan coil units and induction units
• Utilized for precise three-way mixing or diverting valve control service
