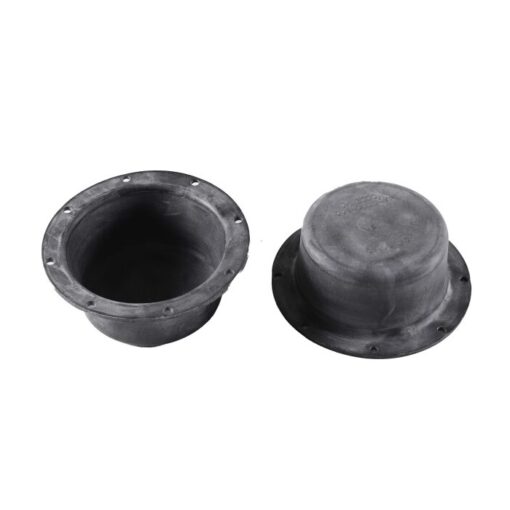

V-3000-6000 Johnson Controls Diaphragm

Overview

The Johnson Controls V-3000-6000 is a replacement diaphragm designed for V-3000-1 exposed and V-3000-8012 series pneumatic valve actuators. It serves as a vital repair part to help maintain the accurate positioning of steam or water valve modulating plugs in response to a pneumatic signal from a controller.

Features

• Molded synthetic rubber design provides long-lasting durability.
• Delivers a constant effective area throughout the valve stem stroke for consistent performance.
• Easy to install as a direct replacement component to extend the service life of the actuator.

Specifications

• Part Type: Replacement Diaphragm
• Compatibility: V-3000-1 and V-3000-8012 Pneumatic Actuators
• Material: Molded Synthetic Rubber
• Package Quantity: 2 per pack

Applications

• Ideal for use in commercial HVAC systems and building automation setups.
• Designed for pneumatic valve assemblies regulating the flow of steam, hot water, or chilled water through various coils and heat exchangers.
