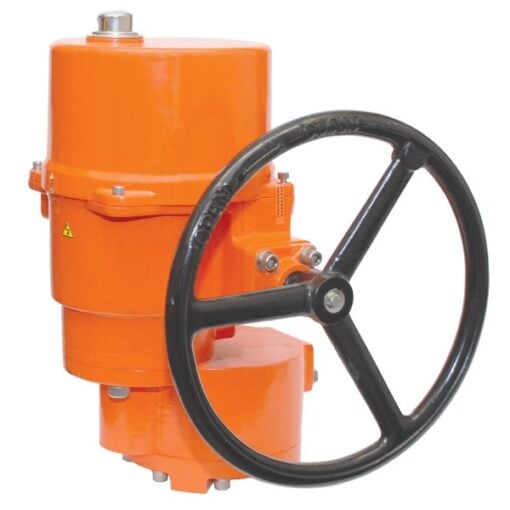

SY10-120MFT Belimo Valve Actuator
$7,822.20
The Belimo SY10-120MFT is a heavy-duty industrial non-fail-safe quarter-turn valve actuator with 120V power supply and programmable Multi-Function Technology (MFT).
Overview
The Belimo SY10-120MFT is a heavy-duty industrial non-fail-safe quarter-turn valve actuator with 120V power supply and programmable Multi-Function Technology (MFT).
Features
- Multi-Function Technology (MFT) permits custom signal calibration and feedback settings
- Two integrated SPDT auxiliary switches for end-position indication
- Heavy-duty die-cast aluminum NEMA 4X / IP66/67 housing
- Handwheel manual override for easy manual positioning
Specifications
- Actuator Type: Non fail-safe
- Control Type: MFT / Programmable
- Nominal Voltage: AC 120 V
- Running Time (Motor): 76 s
- Auxiliary Switches: 2 x SPDT
- Degree of Protection: IP66/67, NEMA 4X
Applications
- Large industrial quarter-turn valve automation including butterfly and ball valves
- Process control, water treatment plants, and heavy commercial HVAC systems
| Weight | 160 lbs |
|---|---|
| Dimensions | 13 × 15 × 19 in |
| Actuator Type | Non Fail-Safe |
| Auxiliary Switch | 2 x SPDT |
| Control Type | MFT/Programmable |
| Voltage | AC 120 V |
