RM7824A1006 Honeywell Burner Control
***Obsolete***
Replaced by RM7824A2006 and will require a New Base Q78000 A Or B 2 Series

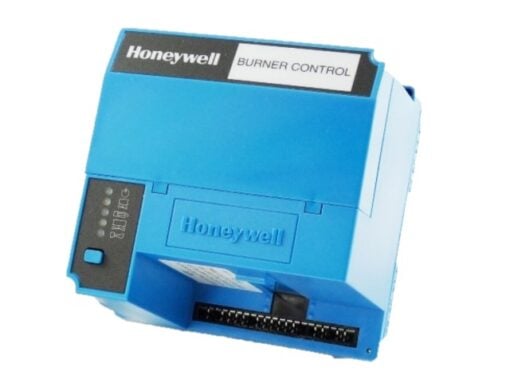

The Honeywell RM7824A1006 Burner Control On-Off Primary Control, 24Vdc, Intermittent Pilot, Intermittent Main Flame Establishing Period, 4 Second or 10 Second Pilot Flame Establishing Period,Five LEDs Provide Sequence Information, Nonvolatile Memory, Functions Include Automatic Burner Sequencing, Flame Supervision, System Status Indication, System or Self Diagnostics and Troubleshooting, -40-140 Degree Ambient Temperature Range
The Honeywell RM7824A1006 Burner Control 24 VDC
Overview
24 Vdc microprocessor-based integrated burner control for automatically fired gas, oil or combination fuel single burner applications. Provides level of safety, functional capability and features beyond the capacity of conventional controls.
Features
- For use with R7824C Amplifier with C7024E,F Flame Detectors; R7848A,B with C7015A Flame Detectors; R7851B with C7927, C7962 Flame Detectors; or R7852A,B with C7915 Flame Detectors.
- Functions include automatic burner sequencing, flame supervision, system status indication, system or self diagnostics and troubleshooting.
- Five LEDs provide sequence information.
- Selectable recycle or lockout on loss of flame.
- Shutter drive output for use with dynamic self-check flame detectors.
- Access for external electrical voltage checks.
- Plug-in flame amplifier.
- Nonvolatile memory retains history files and lockout status after loss of power.
Product Specifications
| Application | Primary Control 24 Vdc |
| Dimensions (in.) | 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase |
| Dimensions (mm) | 127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase |
| Weight (lb) | 1 lb 13 oz |
| Weight (kg) | 8 kg |
| Approvals, Underwriters Laboratories Inc. | Component Recognized, File No. MP268; Guide No. MCCZ. |
| Approvals, Canadian Standards Association | Certified, File No. LR95329-3. |
| Voltage | 24 Vdc (+10, -15%) |
| Shipping and Storage Temperature Range (F) | -40 F to +140 F |
| Shipping and Storage Temperature Range (C) | -40 C to +60 C |
| Approvals, Federal Communications Commission | FCC Part 15, Class B, Emissions. |
| Flame Establishing Period – Pilot | 4 sec or 10 sec |
| Flame Establishing Period – Main | Intermittent |
| Required Components | Q7800A,B Universal Wiring Subbases. R7824 or R7848 Flame Signal Amplifier. |
| Pilot Type | intermittent |
| Vibration | 5 G environment |
| Approvals, Swiss RE | Acceptable |
| Approvals, Factory Mutual | Report No. OX4A5.AF. |
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
