MS40-7173 Invensys Actuator
$686.20
Invensys MS40-7173 Proportional Actuator, SR, 24V, 150 lb-in; SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 150 lb-in, NEMA 1 or 4

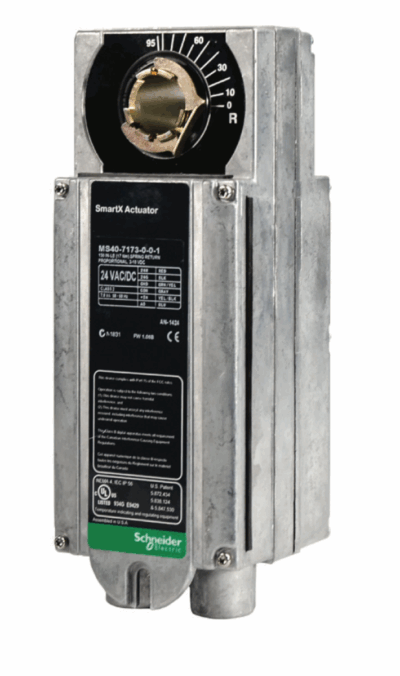

Invensys MS40-7173 Proportional Actuator, SR, 24V, 150 lb-in
Actuator: (MS40-7173):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
- Leads and Connections: 3 ft Appliance
- Torque: 150 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 4
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-7xxx
- Actuator Use: Dampers, Globe Valves
Product Alert: Linkage required for Globe Valve Assembly use. NEMA 4 with customer supplied water tight conduit connectors.
Product Specifications
| Actuator Housing Material | Aluminum die cast |
| Actuator Type | Electric |
| Actuator Use | Dampers |
| Globe Valves | |
| Auxiliary Switch | 2 SPDT |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Conduit Connection | 1/2 in |
| Control Signal | Proportional/Modulating |
| Control Signal Range | 2 to 10 VDC |
| 4 to 20 mAdc | |
| Duty Cycle | 100% |
| Humidity | 5 to 95% non-condensing |
| Insulation Class | Class II |
| IP Protection Rating | IP10 |
| IP56 | |
| Lead Length | 3 ft |
| Leads and Connections | Appliance |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Motor Type | DC Brushless |
| NEMA Protection Rating | NEMA 1 |
| NEMA 4 | |
| Override | 5/32 Allen wrench |
| Position Indicator | Stroke indicator on bracket |
| Power Consumption Holding VA | 5.40 VA |
| Power Consumption Running VA | 9.40 VA |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 22 to 30 VDC |
| 24 VAC | |
| 24 VDC | |
| Power Input Voltage AC Tolerance | Plus or minus 20% |
| Product Range | SmartX Actuator |
| Product Series | Mx4x-7xxx |
| Rotation | 92 degrees |
| Rotation Tolerance | Plus or minus 1 degrees |
| Rotational Range Adjustment | 0 to 92 degrees |
| Temperature Ambient Operating Range | -31.6 to 60 C (-25 to 140 F) |
| Temperature Shipping and Storage Range | -40 to 71 C (-40 to 159.8 F) |
| Torque | 150.00 in-lb |
| 16.95 Nm |
Documents
| Catalog | Valves & Actuators Catalog 2020 North America | |||
| Selection guide | Spring-Return and Non-Spring Return Direct Coupled SmartX Actuators |
| Weight | 10 lbs |
|---|---|
| Dimensions | 7 × 15 × 6 in |
