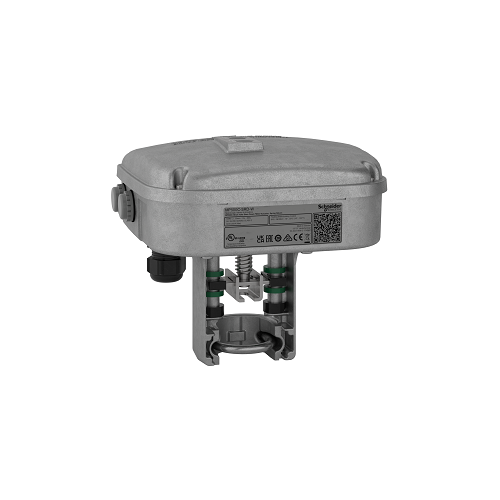

MP500C-SRD-W Schneider Electric Actuator
$462.70
SpaceLogic MP500C-SR Actuator for PIBCV Valves, Multi-Signal Control, Spring Return DOWN (Closed Valve), 24 Vac/dc, Terminal Block Conn., 500 N, IP65
Actuator: (MP500C-SRD-W):
- Actuator Type: Electric
- Control Signal: Proportional, Floating
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC, 24 VDC
- Leads and Connections: No leads
- Force: 500 N
- Mechanical Movement: Linear
- Auxiliary Switch: Available as accessory
- Additional Features: Field selectable floating input signal travel time
- Protection Rating: IP65
- Product Line: Schneider Electric
- Product Range: Spacelogic Actuator
- Product Series: MP500C-SR
- Actuator Use: Dampers, Electronic Pressure Independent Characterized Control Valves
Product Alert: Spring return stem down
Product Specifications
| Actuator Product Range | SpaceLogic |
| Actuator Product Series | MP500C-SR |
| Actuator Type | Electric |
| Auxiliary Switch | 2 SPDT |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 |  WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm – www.P65Warnings.ca.gov |
| Conduit Connection | Conduit connector holes |
| Control Signal | Floating |
| Proportional/Modulating | |
| CR EcoStruxure Level result | Not connectable |
| Feedback Signal | 0 to 5 VDC |
| 2 to 10 VDC | |
| Force lbf | 113 lbf |
| Force N | 500 N |
| Humidity | 0…90 % RH, non-condensing |
| IP Protection Rating | IP65 |
| Leads and Connections | Terminal Block |
| Loss of Power Type | Spring return |
| Mechanical Movement | Linear |
| Motor Type | Brushless DC motor |
| Override | Automatic reset |
| Power Consumption Running VA | 30 VA AC |
| Power Input Transformer Sizing VA | 50 VA |
| Product Destination | pressure independent control valves |
| Product Or Component Type | Actuator |
| Stroke Auto Calibration | Yes |
| Stroke Running Time | 30 s |
| Temperature Ambient Operating Range | 14…122 °F (-10…50 °C) |
| Temperature Shipping and Storage Range | -13…149 °F (-25…65 °C) |
Documents
| Weight | 5 lbs |
|---|---|
| Dimensions | 12 × 10 × 10 in |
