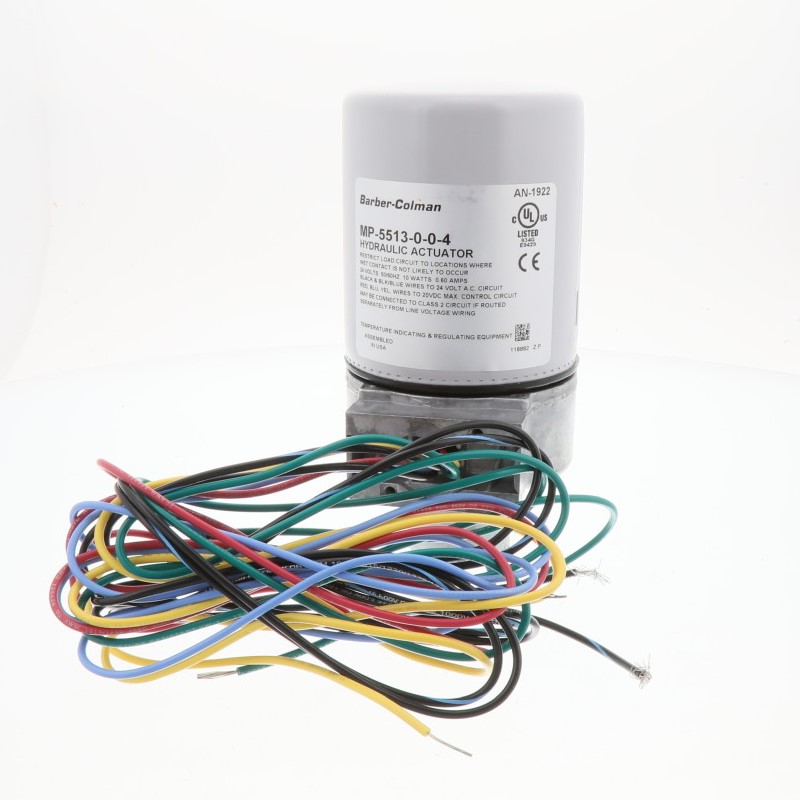

MP-5513 Invensys Actuator
$1,411.80
Invensys MP-5513 Proportional Actuator, SR, 24V, 50/60 Hz, 0-10V Input; Act (MP-5513): Elec/Hyd, Prop, 0-10 VDC, SR, 24 VAC, App, 15 in-lb, Linear, N1, Erie
Invensys MP-5513 Proportional Actuator, SR, 24V, 50/60 Hz, 0-10V Input
Electronic Positive Positioning Hydraulic Actuator, 24 V, Positive Positioner, 0 to 10 Vdc Input Signal, Spring Return
Actuator: (MP-5513):
- Actuator Type: Electric/Hydraulic
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: 4 ft Appliance
- Torque: 15 in-lb
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Electronic Hydraulic
- Product Series: MP-5500
- Actuator Use: Dampers, Globe Valves
Product Specifications
| Actuator Housing Material | Aluminum die cast lower housing and painted steel upper housing |
| Actuator Type | Electric/Hydraulic |
| Actuator Use | Dampers |
| Globe Valves | |
| Auxiliary Switch | 2 |
| By Schneider | Yes |
| California Residents | WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Conduit Connection | 1/2 in |
| Control Signal | Proportional/Modulating |
| Control Signal Range | 0 to 10 VDC |
| Humidity | 5 to 95% non-condensing |
| Insulation Class | Class II |
| IP Protection Rating | IP10 |
| Lead Length | 4 ft |
| Leads and Connections | Appliance |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Linear |
| Motor Type | Oil immersed |
| Override | 5/32 Allen wrench |
| Position Indicator | Green push stem with color markers |
| Power Consumption Running VA | 18.00 VA |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 24 VAC |
| Power Input Voltage AC Tolerance | Plus or minus 10% |
| Power Output Amps | 0.03 Amp |
| Power Output Voltage | 20 VDC |
| Product Range | Electronic Hydraulic |
| Product Series | MP-5500 |
| Stroke Auto Calibration | No |
| Temperature Ambient Operating Range | -28.8 to 39.4 C (-20 to 103 F) |
| Temperature Shipping and Storage Range | -40 to 60 C (-40 to 140 F) |
| Torque | 1.69 Nm |
| 14.96 in-lb |
Documents
| Catalog | Valves & Actuators Catalog 2020 North America |
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 5 × 4 in |
