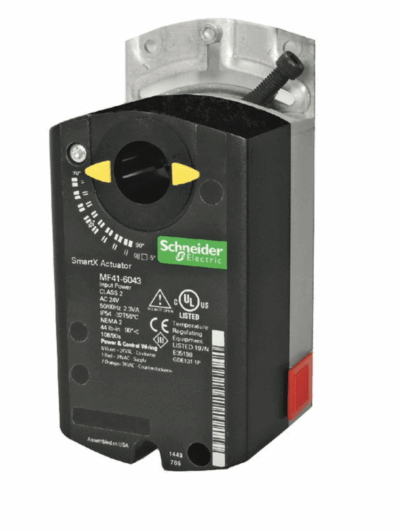

MF41-6083-502 Invensys Valve Actuator
$238.90
Invensys MF41-6083-502 Floating Valve Actuator, NSR, 24V, 70 lb-in, w/2 Aux Switches; SmartX, Damper Actuator, floating, non-spring return, 24 Vac, 3 ft plenum cable, 88 lb-in, 2 SPDT, NEMA 2
Invensys MF41-6083-502 Floating Valve Actuator, NSR, 24V, 70 lb-in, w/2 Aux Switches
Actuator: (MF41-6083-502):
- Actuator Type: Electric
- Control Signal: Floating
- Loss of Power Type: Non-Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: 3 ft Plenum
- Torque: 88 in-lb
- Mechanical Movement: Rotary
- Auxiliary Switch: 2 SPDT
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-6xxx
- Actuator Use: Dampers, Globe Valves
Product Alert: Linkage required for Globe Valve Assembly use.
Product Specifications
| Actuator Type | Electric |
| Actuator Use | Dampers |
| Globe Valves | |
| Auxiliary Switch | 2 SPDT |
| By Schneider | Yes |
| Control Signal | Floating |
| IP Protection Rating | IP11 |
| Lead Length | 3 ft |
| Leads and Connections | Plenum |
| Loss of Power Type | Non-Spring Return |
| Mechanical Movement | Rotary |
| NEMA Protection Rating | NEMA 2 |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 24 VAC |
| Product Range | SmartX Actuator |
| Product Series | Mx4x-6xxx |
| Rotation | 95 degrees |
| Rotational Range Adjustment | 0 to 95 degrees |
| Torque | 10.00 Nm |
| 88.51 in-lb |
Documents
| Catalog | Valves & Actuators Catalog 2020 North America | |||
| Selection guide | Spring-Return and Non-Spring Return Direct Coupled SmartX Actuators |
| Weight | 7 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
