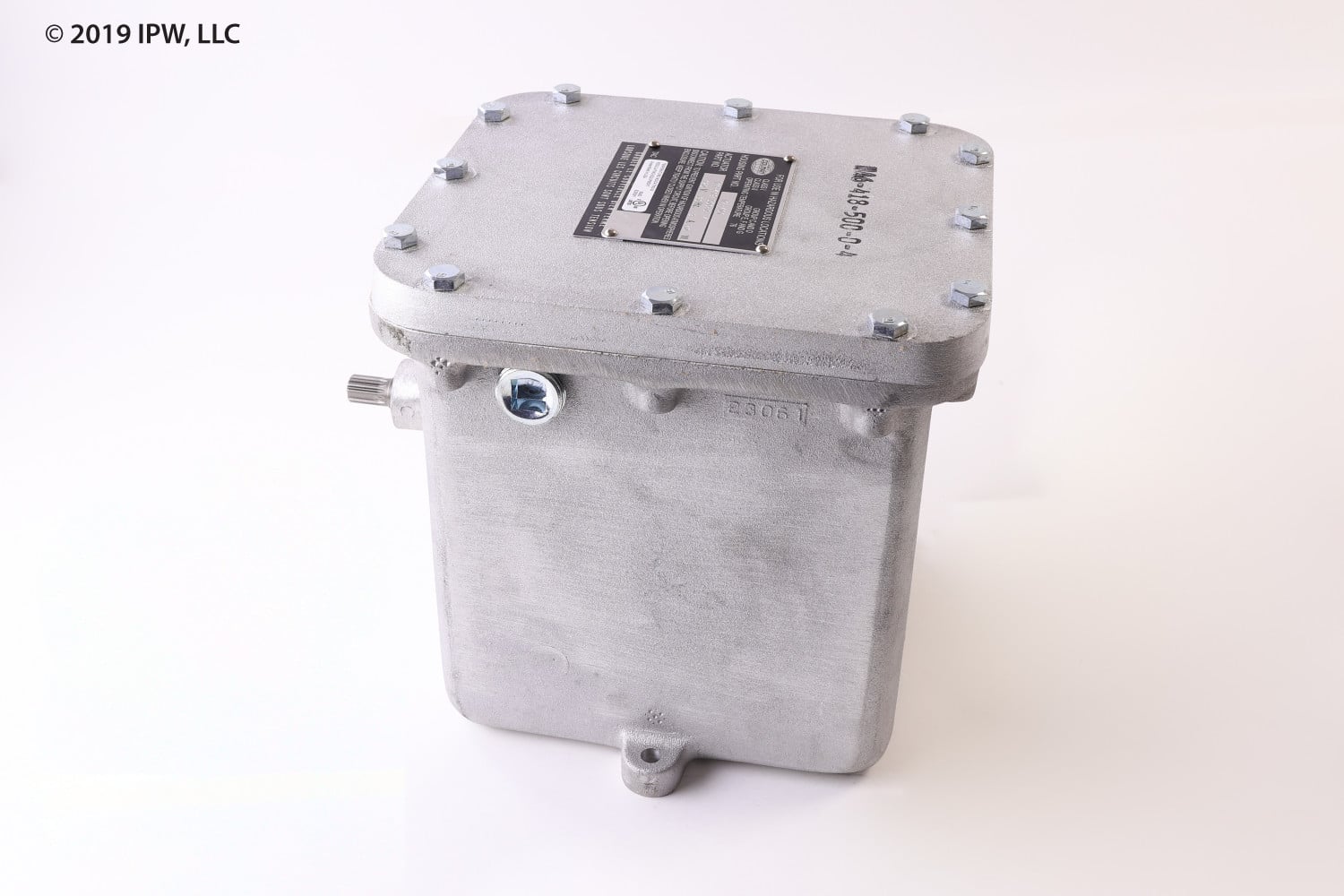

MA6-418-500 Invensys Actuator
$3,354.70
Two Position, SR, 120V, 60 lb-in, damper actuator for hazardous locations, w/SPDT Aux. Switch; Act (MA6-418-500): Elec, 2Pos, SR, 120 VAC, TB, 60 in-lb, Rotary, SPDT, N4, Erie
Two Position, SR, 120V, 60 lb-in, damper actuator for hazardous locations, w/SPDT Aux. Switch
Actuator: (MA6-418-500):
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 120 VAC
- Leads and Connections: Terminal Block
- Torque: 60 in-lb
- Mechanical Movement: Rotary
- Auxiliary Switch: 1 SPDT
- Protection Rating: NEMA 4
- Product Line: Schneider Electric
- Product Range: Gear Train
- Product Series: MAx-4xx
- Actuator Use: Dampers, Globe Valves
Product Specifications
| Actuator Type | Electric |
| Actuator Use | Dampers |
| Globe Valves | |
| Auxiliary Switch | 1 SPDT |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Control Signal | 2-Position (On/Off) |
| IP Protection Rating | IP56 |
| Leads and Connections | Terminal Block |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Power Input Frequency | 60 Hz |
| Power Input Voltage | 120 VAC |
| Product Range | Gear Train |
| Product Series | MAx-4xx |
| Rotation | 180 degrees |
| Torque | 6.78 Nm |
| 60.01 in-lb |
Documents
| General instructions | MAX-305 and MAX-318 Series MAX-405 Through MAX-419 Series Two-Position Actuators |
| Weight | 26 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
