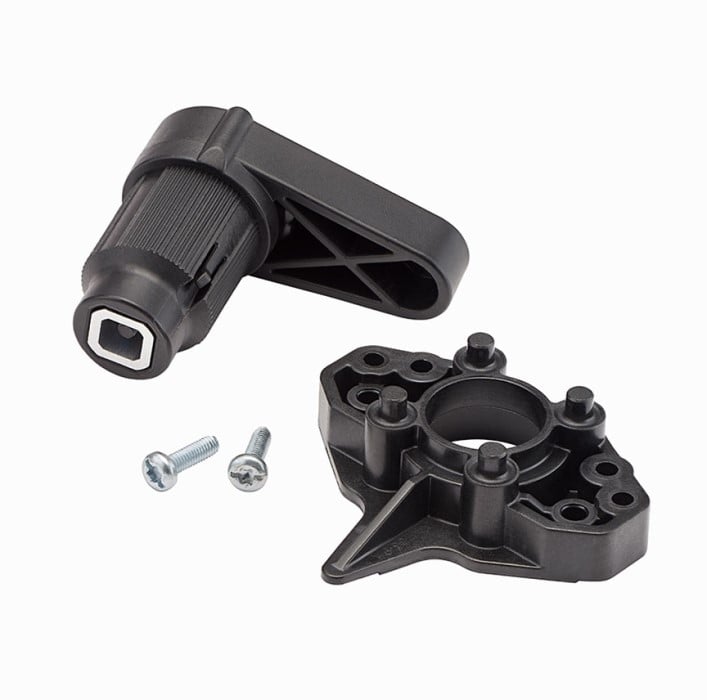

M9310-500 Johnson Controls Ball Valve Linkage

Overview

The Johnson Controls M9310-500 is a dedicated ball valve linkage kit designed to convert M9308 and M9310 Series Electric Damper Actuators into VA9308 and VA9310 Series Electric Valve Actuators. This kit allows the same actuator to be utilized for either damper or valve operation, providing a flexible and cost-effective solution for building automation setups. It features a manual lever for manual override and is constructed for durability in demanding environments.

Features

• Facilitates the easy conversion of damper actuators to valve actuators, reducing the need for multiple actuator types.
• Includes a manual lever to allow manual adjustment and position control.
• Designed with durable construction to withstand harsh operating conditions.
• Simplifies distributor stocking and field retrofits by utilizing a single actuator platform.

Specifications

• Product Type: Ball Valve Linkage Kit
• Compatibility: Johnson Controls M9308 and M9310 Series Actuators
• Associated Valve Series: Designed for operating VG1000 ball valves
• Weight: Approximately 2 lbs (packaged variant weight around 0.1 kg)
• Dimensions: 6 x 4 x 2 inches
• Product Subcategory: Actuator Accessories

Applications

• Used in HVAC systems to transition control from air dampers to water or steam control valves.
• Ideal for retrofit applications where existing damper actuators are repurposed for operating VG1000 series ball valves.
• Integrated into building automation systems requiring reliable commercial valve actuation with manual override capabilities.
