M9203-115 Johnson Controls Mounting Kit

Overview

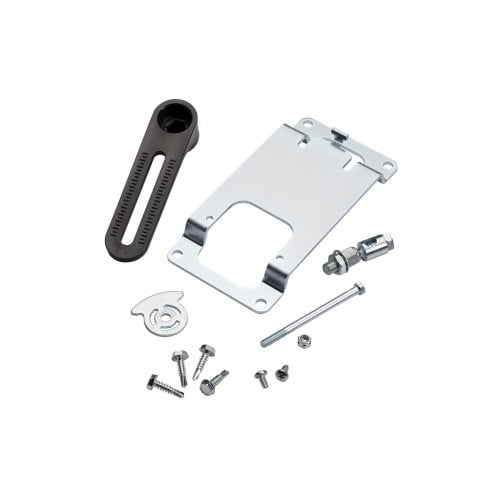

The Johnson Controls M9203-115 is a remote universal mounting kit designed for use with M9203 and M9204 Series electric spring return actuators. It enables remotely mounted, linkage-driven applications when the actuator cannot be direct-mounted onto the damper shaft, facilitating versatile installation in spaces where the connection hardware is pre-existing or provided separately.

Features

• Allows remote, linkage-driven mounting of the actuator away from the damper or valve.
• Supports both parallel mounting and field-selectable spring-return direction (clockwise or counterclockwise) by rotating or flipping the actuator.
• Includes a crank arm to facilitate linkage connections.
• Enables flexible installation locations, either internally or externally on ducts, dampers, or air handling units.

Specifications

• Compatible Brand: Johnson Controls
• Compatible Actuator Series: M9203 and M9204 Series (such as M9203-GGB-2)
• Minimum Round Shaft Diameter: 1/4 inch
• Maximum Round Shaft Diameter: 1/2 inch
• Product Weight: 3 lbs
• Product Dimensions: 11 x 5 x 4 inches

Applications

• Designed for commercial HVAC systems requiring remote actuator placement on a duct, damper, or air handling unit.
• Ideal for setups requiring parallel mounting of the actuator relative to the driven component.
• Used in linkage-driven setups where standard direct-shaft mounting is restricted by tight spaces or mechanical configurations.
