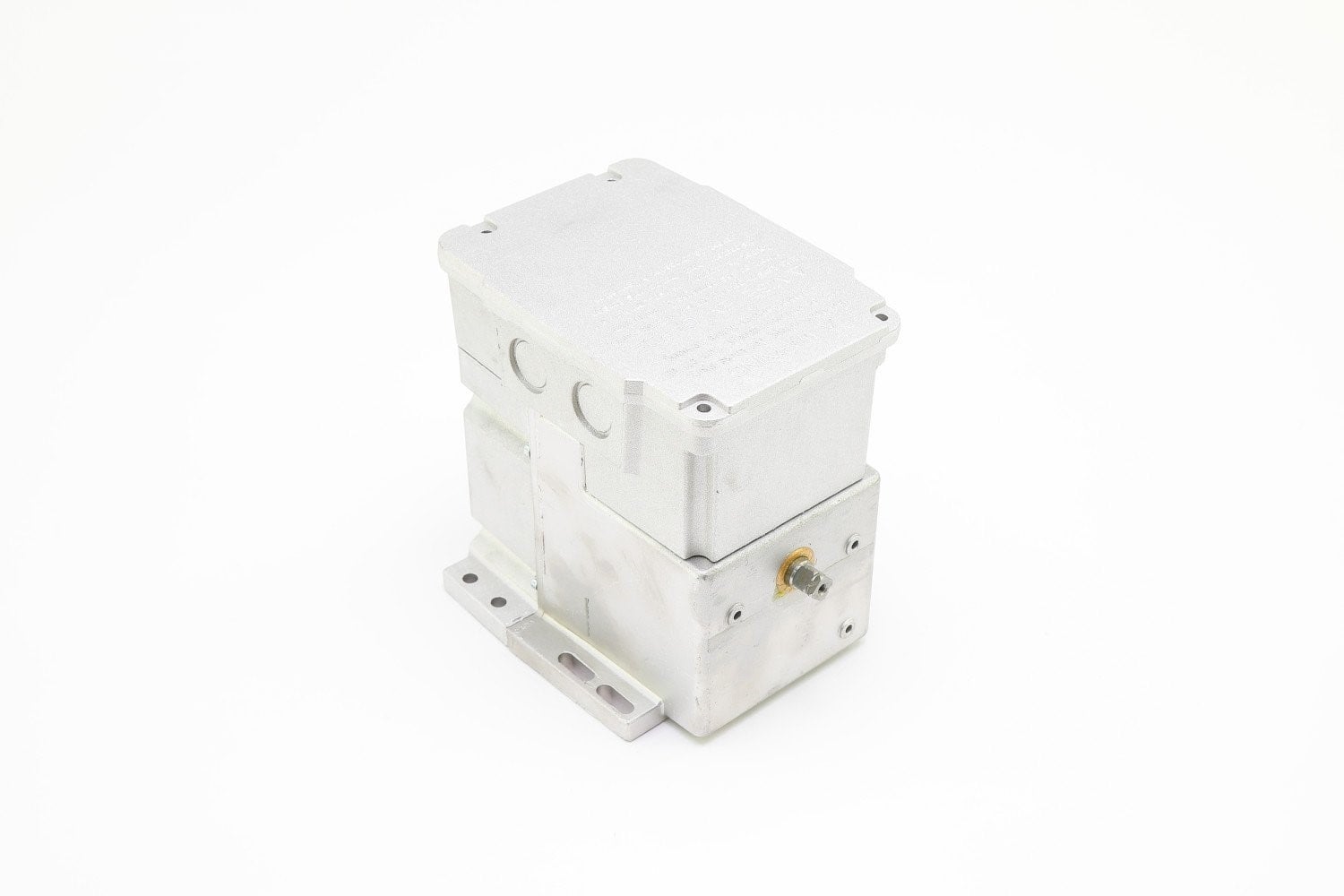

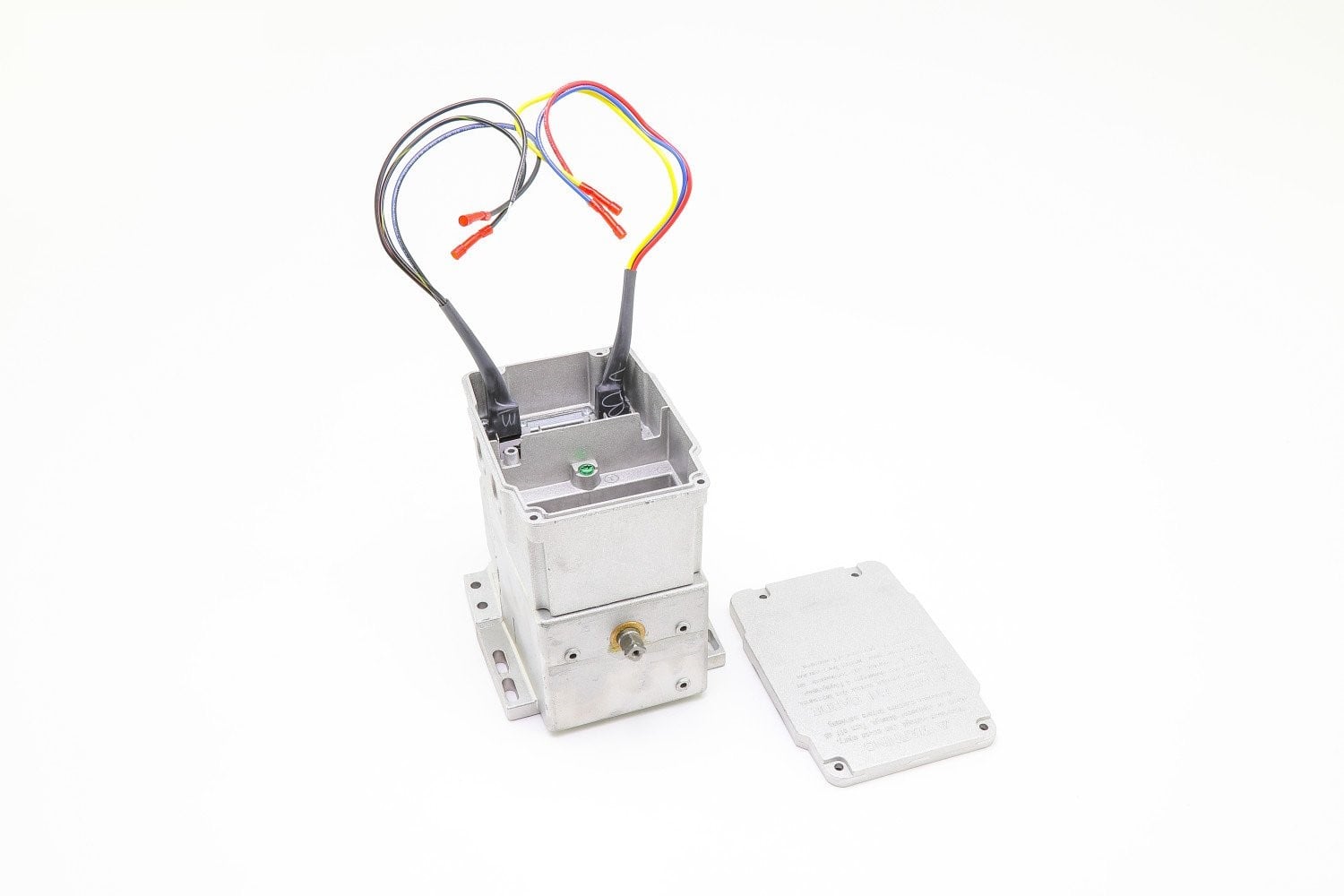

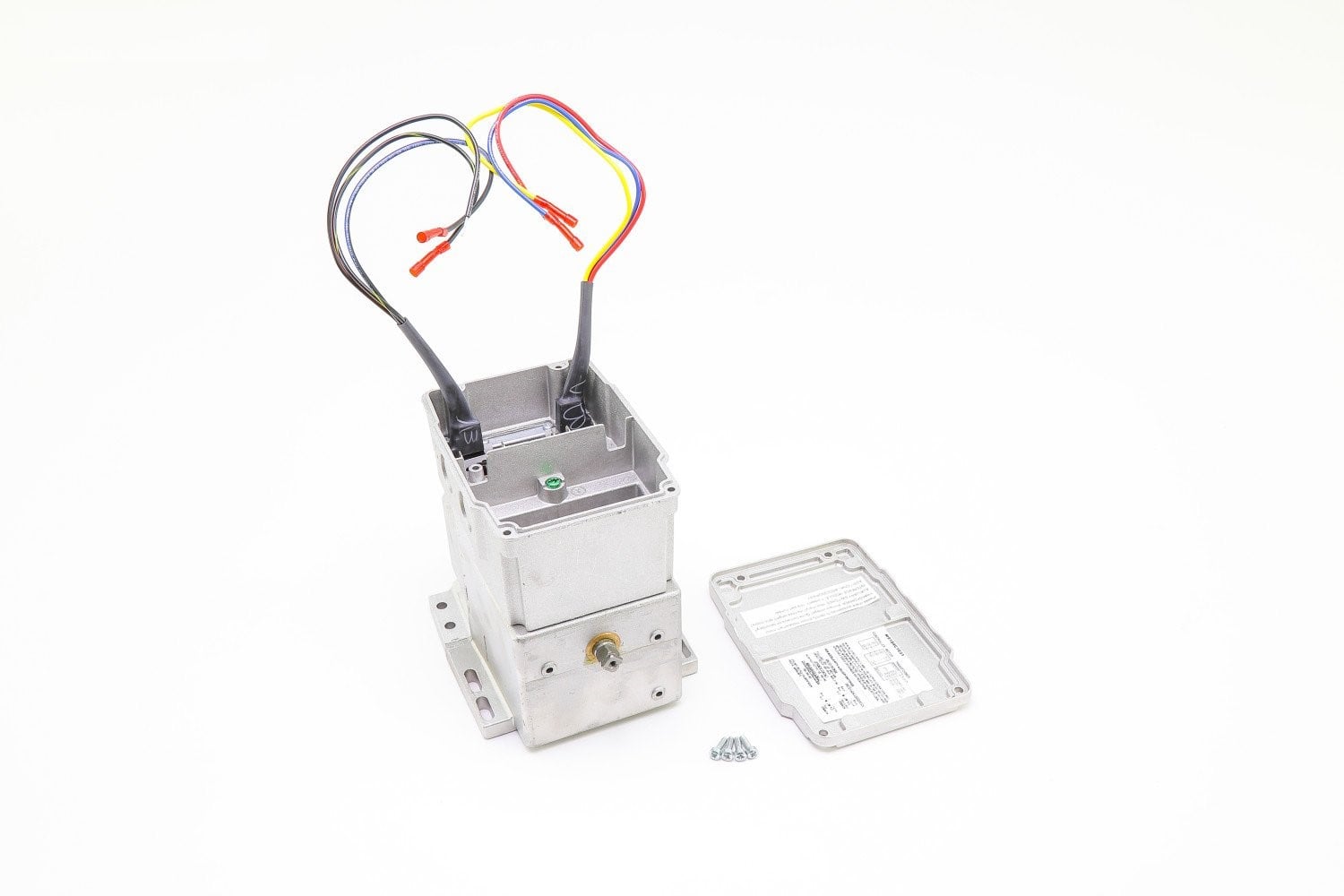

M9184C1031 Honeywell Non-Spring Return Actuator
$1,680.00
THE HONEYWELL M9184C1031 Proportional Modutrol IV Motor, 24Vac, 135 Ohm Control Signal, Non Spring Return, 2 Internal Auxiliary Switches, 150 Lb-In Torque, 30-60 Second Nominal Timing, 90-160 Degree Stroke, 90 Degree Factory Stroke Setting, Quick Connect Terminals, Foot Mounted, Dual Ended Square Shaft, .375″ Shaft Dimension, Integral Junction Box Provides Nema 3 Weather Protection
6 in stock (can be backordered)
THE HONEYWELL M9184C1031 MODUTROL Motor Actuator 50/60HZ. 90 DEG ADJ STROKE. 30-60 SEC TIMING. 150 LB-IN TORQUE. TAPPED DUAL END Shaft.
Overview
The Honeywell M9184C1031 is a modulating non-spring return damper/valve actuator, designed for control systems that drive it directly. It is foot-mounted and delivers 150 in-lb torque at 24 VAC. This actuator includes two internal auxiliary switches for position feedback or interlock logic, making it ideal for BMS or control integration.
It is commonly used in HVAC, boiler, and combustion control systems where proportional or modulating control is required, rather than simple open/close or spring return action.
Features
-
Non-spring return actuator (motor holds its position when unpowered)
-
150 in-lb rated output torque
-
24 VAC power input
-
Foot-mount configuration
-
Includes two internal auxiliary switches
-
Modulating action suitable for proportional control
-
Rugged housing suited for industrial environments
-
Precision control makes it ideal for dampers, valves, and control linkages
Specifications
| Part Number | M9184C1031 |
| Application | Electric |
| Dimensions (in.) | 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep |
| Dimensions (mm) | 164 mm high x 140 mm wide x 185 mm deep |
| Weight (lb) | 5 lb |
| Item Type | Product |
| Mounting | Foot-mounted |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | Listed: File No. E4436, Guide No. XAPX for USA and Canada |
| Electrical Connections | Quick-connect terminals |
| Supply Voltage | 24V |
| Power Consumption | Driving– 15 VA |
| Approvals, CE | EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD) |
| Ambient Temperature Range (F) | -40 F to +150 F |
| Ambient Temperature Range (C) | -40 C to +60 C |
| Internal Auxiliary Switch | 2 |
| Auxiliary Switch Ratings | AFL – 120 Vac– 7.2A; ALR- 120 Vac– 43.2A; AFL – 240 Vac– 3.6A; ALR- 240 Vac– 21.6A |
| Stroke | Adjustable; 90 to 160 degrees, Symmetrical |
| Shaft Dimensions (in.) | 375 in. Square |
| Control Signal | Proportional, 135 ohm |
| Fail Safe Mode | Non-Spring Return |
| Torque Rating (lb-in.) | 150 lb-in. |
| Torque Rating (Nm) | 17 Nm |
| External Auxiliary Switches Available | Yes |
| Shaft Rotation (upon control signal increase) | Clockwise (as viewed from power end) (normally closed) |
| Factory Stroke Setting | 90 degrees |
| Timing, Nominal | 30-60 sec |
| Feedback | No |
| Shaft Dimensions (mm) | 10 mm Square |
| Motor shafts | Dual-ended shaft |
| Deadweight Load on Shaft | Either End– 200 lbs.; Combined on both Shafts– 300 lbs. |
| Internal Transformer | None |
Applications
The Honeywell M9184C1031 actuator is used in control systems requiring modulating motion such as:
-
HVAC dampers (airflow control)
-
Valve actuation in heating or cooling systems
-
Combustion dampers in boiler systems
-
Building automation and BMS systems requiring position feedback
-
Systems that need precision proportional control rather than just two-position motion
Its internal auxiliary switches support reserved signal paths, e.g. indicating end positions or fault conditions.
Benefits
-
Provides precise modulating motion for control systems
-
Internal auxiliary switches add feedback or interlock capability
-
No spring-return means actuator stays in the commanded position without a power draw
-
Robust mechanical and electrical design for reliability
-
Suitable for control environments demanding fine adjustment
| Weight | 10 lbs |
|---|---|
| Dimensions | 6 × 11 × 8 in |
