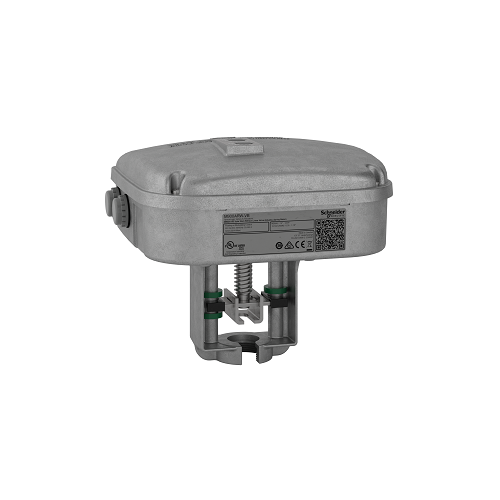

M900AR-VB Schneider Electric Actuator
$517.30
Spacelogic, Globe Valve Actuator, floating or proportional, spring return up, 24V AC/DC, 900 N, NEMA 2
Actuator: (M900AR-VB):
- Actuator Type: Electric
- Control Signal: Floating, Proportional
- Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
- Loss of Power Type: Spring Return
- Power Input Voltage: 20 to 29 VDC, 24 VAC, 24 VDC
- Leads and Connections: Terminal Block
- Force: 900 N
- Mechanical Movement: Linear
- Auxiliary Switch: Available as accessory
- Protection Rating: IP40, IP54, NEMA 1, NEMA 2
- Product Line: Schneider Electric
- Product Range: Spacelogic
- Product Series: M900
- Actuator Use: Globe Valves
Product Alert: NEMA 2 (IP 54, vertical mount only) with both conduit connectors used. NEMA 1 IP40 with one connector used.
Product Specifications
| Actuator Product Range | SpaceLogic |
| Actuator Product Series | M900 |
| Actuator Type | Electric |
| Auxiliary Switch | 2 SPDT (optional) |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 |  WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm – www.P65Warnings.ca.gov |
| Control Signal | Floating |
| Proportional/Modulating | |
| CR EcoStruxure Level result | Connectable ready |
| Feedback Signal | 2 to 10 VDC |
| Force lbf | 202 lbf |
| Force N | 900 N |
| Humidity | 15…95 % non-condensing |
| IP Protection Rating | IP54 |
| Leads and Connections | Terminal Block |
| Loss of Power Type | Spring return |
| Manufacturer | Schneider Electric |
| Mechanical Movement | Linear |
| Motor Type | Brushless DC motor |
| NEMA Protection Rating | NEMA 2 |
| Override | Automatic reset |
| Product Destination | globe valve |
| Product Or Component Type | Actuator |
| Temperature Ambient Operating Range | 14…122 °F (-10…50 °C) |
| Temperature Shipping and Storage Range | -13…149 °F (-25…65 °C) |
Documents
| Catalog | Valves & Actuators Catalog 2021 North America | |||
| Installation instructions | Spacelogic M900A Series Spring Return Actuators | |||
| Selection guide | VB7000 series with M900A Selection Guide | |||
| VB-8000 and VB-9000 Series Globe Valves with M900A Actuator | ||||
| Specification sheet | Spacelogic M900A Series Spring Return Actuators |
| Weight | 5 lbs |
|---|---|
| Dimensions | 12 × 10 × 10 in |
