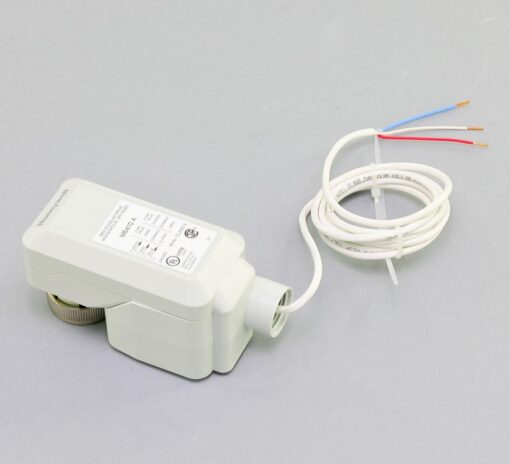

M6410A1029 Honeywell
$115.00
THE HONEYWELL M6410A1029 UL94-5V PLENUM RATED DEVICE. INTEGRAL CONDUIT CONNECTOR.
THE HONEYWELL M6410A1029 UL94-5V PLENUM RATED DEVICE. INTEGRAL CONDUIT CONNECTOR.; Cartridge Globe Valve Actuator, SPDT, Floating, Two Position, 40.5 Lbf Stem Force, 24Vac, 1/4″ Stroke, Fails in Place, For use with 1/2″ and 3/4″ V58xx Series Globe Valves
Overview
M6410A and M7410F Cartridge Globe Valve Non-Spring Return Actuators are small electric actuators for individual room control that provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.
Features
| Suitable for Excel/IRC system or other controllers providing specified signals. |
| Magnetic coupling for torque limitation independent of voltage supply and self-adjustment of the close-off port. |
| No mounting tools required. |
| Small size allows installation in limited space of fan coil units, induction units, and small reheaters or recoolers. |
| Visual position indication (red pin). |
Specifications
| Application | HVAC |
| Dimensions (in.) | 2 3/8 in. high x 1 15/16 in. wide x 3 15/16 in. deep |
| Dimensions (mm) | 61 mm high x 49 mm wide x 100 mm deep |
| Includes | 1/2 in. conduit hub |
| Used With | 1/2 inch and 3/4 inch V58XX Globe Valves |
| Weight (lb) | 0.3125 lb |
| Weight (kg) | 0.15 kg |
| Materials | Low Maintenance Plastic Housing |
| Item Type | Product |
| Mounting | Threads onto V58XX valve bonnet |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | Flammability Rating UL94V-5V |
| Electrical Connections | Plenum-rated cable |
| Operating Humidity Range (% RH) | 5 to 95% RH |
| Supply Voltage | 24 Vac +10%, -30% |
| Power Consumption | Driving– 0.7 VA |
| Shipping and Storage Temperature Range (F) | -40 F to +158 F |
| Shipping and Storage Temperature Range (C) | -40 C to +70 C |
| Ambient Temperature Range (F) | 32 F to 122 F |
| Ambient Temperature Range (C) | 0 C to 50 C |
| Environmental, Electrical or Ingress Protection Rating | IP42,Class I Insulation (24 Vac) |
| Internal Auxiliary Switch | 0 |
| Fluid Temperature (C) | 130 C Maximum |
| Fluid Temperature (F) | 266 F Maximum |
| Actuator Type | Valve |
| Control Signal | SPDT; Two position; Floating |
| Fail Safe Mode | Stays in place |
| Torque Rating (lb-in.) | 40.5 lbf |
| Torque Rating (Nm) | 180 N |
| Switches | No |
| Stroke (in.) | 1/4 in. |
| Stroke (mm) | 6 mm |
| Cable | Threaded conduit connector |
| Timing, Nominal | Driving @ 60 Hz (sec)– 125 sec |
| Feedback | No |
| Manual operation | None (use valve dust cap) |
Additional Information
| Weight | 3 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
