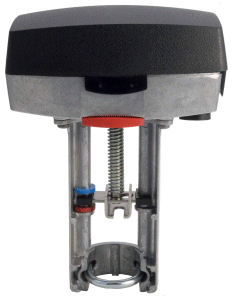

M400A Invensys Actuator
$288.90
TAC Forta Non Spring Return Globe Valve Actuator 90 lbf (400 N), 24 Vac, Floating and 0 to 10 Vdc, 2 to 10 Vdc, 4 to 20 mA plus other Proportional Input Signals, .36 2.0 Stroke. (order valve linkage separately); Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 400 N, U-bolt mount, NEMA 1 or 2
TAC Forta Non Spring Return Globe Valve Actuator 90 lbf (400 N), 24 Vac, Floating and 0 to 10 Vdc, 2 to 10 Vdc, 4 to 20 mA plus other Proportional Input Signals, .36 2.0 Stroke. (order valve linkage separately)
Actuator: (M400A):
- Actuator Type: Electric
- Control Signal: Floating, Proportional
- Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Power Input Voltage: 24 VAC
- Force: 400 N
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: FORTA
- Product Series: M400
- Actuator Use: Globe Valves
Product Specifications
| Actuator Type | Electric |
| Actuator Use | Globe Valves |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Control Signal | Floating |
| Proportional | |
| Control Signal Range | 0 to 10 VDC |
| 2 to 10 VDC | |
| 4 to 20 mAdc | |
| Force | 396 N |
| 89 lbf | |
| Loss of Power Type | Non-Spring Return |
| Mechanical Movement | Linear |
| Power Input Voltage | 24 VAC |
| Product Range | FORTA |
| Product Series | M400 |
| Temperature Ambient Operating Range | 32 to 186 C (90 to 366 F) |
| Temperature Shipping and Storage Range | -25 to 65 C (-13 to 149 F) |
Documents
| Weight | 5 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
