M313A01 Schneider Electric Actuator
$179.50
M313A01 proportional electric actuator, spring return, 24VAC, NEMA 2, rotary movement, 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC. 10 (3 m) Plenum Rated Cable.

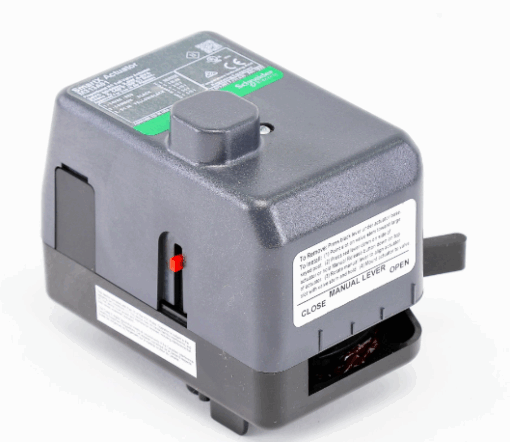

The Schneider Electric M313A01 actuator
Actuator: (M313A01):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: 10 ft Plenum
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: M313
- Actuator Use: Ball Valves
Product Specification
| Actuator Type | Electric |
| Actuator Use | Ball Valves |
| Auxiliary Switch | SPDT |
| Conduit Connection | 3/8 in |
| Control Signal | Proportional/Modulating |
| Control Signal Range | 0 to 10 VDC |
| 0 to 5 VDC | |
| 2 to 10 VDC | |
| 4 to 20 mAdc | |
| 5 to 10 VDC | |
| Humidity | 5 to 95% non-condensing |
| Item Signal Code | MTS |
| Lead Length | 10 ft |
| Leads and Connections | Plenum |
| Loss of Power Type | Spring Return |
| Material Housing | Polymer |
| Material Seals | PTFE |
| Mechanical Movement | Rotary |
| Motor Type | Split capacitor synchronous |
| Override | Yes |
| Override Type | Lever |
| Position Indicator | Yes |
| Position Indicator Type | Housing scale |
| Power Consumption Running VA | 2.80 VA |
| Power Consumption Running VA at 60 Hz | 2.8 |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 24 VAC |
| Power Input Voltage AC Tolerance | Plus 20% or minus 15% |
| Product Line | Schneider Electric |
| Product Range | SmartX Actuator |
| Protection Rating | NEMA 2 |
| Rotation Adjustable | No |
| Temperature Ambient Operating Range | 0 to 60 C (32 to 140 F) |
| Temperature Shipping and Storage Range | -40 to 76 C (-40 to 168.8 F) |
| Web Group | B01 |
Application
The VBB and VBS Series valves with SmartX Actuators are 2-Way or 3-Way, 1/2” or 3/4”, characterized ball valves. The M3 and M2 SmartX Actuators are direct coupled to the VBB/VBS Series valves and accept two-position, floating or proportional control signals from a DDC system, controller, or thermostat for control of hot or chilled water, or solutions of up to 60% glycol. Typical applications include VAV reheat, fan coil units, hot and chilled water coils in air handling units, heat pumps and unit ventilators.
Features
- Easy product selection — all actuators fit all valve bodies.
- Fast, easy actuator installation — no linkage or tools required.
- Flow characterizing insert provides equal percentage flow characteristic for stable, accurate floating and proportional control.
- ANSI IV seat leakage (0.01%) for both 2-Way and 3-Way valves (A and B port).
- Brass and stainless steel trim models.
- Cvs from 0.3…10.
- Normally open, normally closed, and non-spring return assemblies available.
- Two-position, Floating or Proportional (0…5 Vdc, 0…10 Vdc, 5…10 Vdc, or 4…20 mA dc).
- Proportional actuator is direct or reverse acting.
- RoHS Compliant (VBS Assemblies).
- Reach Compliant.
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 5 × 4 in |
