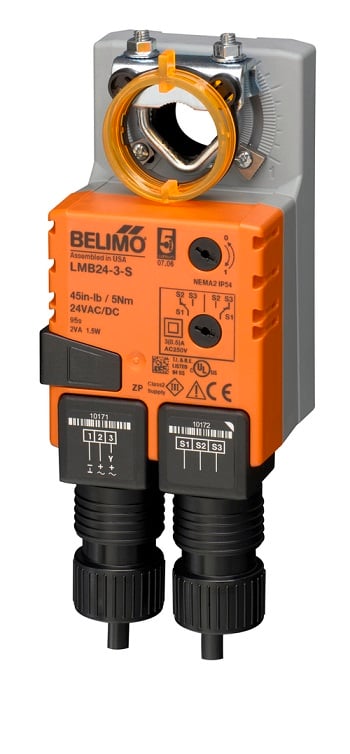

LMB24-3-S Belimo Actuator
$166.60
The Belimo LMB24-3-S is a direct-coupled non-spring return damper actuator engineered for reliable floating point and on/off control in HVAC systems. It provides 45 in-lb of torque to operate air dampers for effective airflow and temperature regulation.
Overview
The Belimo LMB24-3-S is a direct-coupled non-spring return damper actuator engineered for reliable floating point and on/off control in HVAC systems. It provides 45 in-lb of torque to operate air dampers for effective airflow and temperature regulation.
Features
- Direct-coupled design for easy mounting on damper shafts
- Integrated SPDT auxiliary switch for position indication
- Brushless DC motor with electronic overload protection
- Manual override button for manual positioning during setup
- Low energy consumption and quiet operation
Specifications
- Nominal Voltage: AC/DC 24 V
- Torque: 45 in-lb [5 Nm]
- Control Signal: On/Off, Floating Point
- Auxiliary Switch: 1 x SPDT
- Angle of Rotation: 95° adjustable
Applications
- Control of small to medium air dampers in commercial HVAC systems
- Variable air volume (VAV) units and fan coil units
- Airflow modulation and climate control
| Weight | 7 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Actuator Type | Non Fail-Safe |
| Control Type | Floating/3-point, On/Off |
| Torque | 45 in-lb [5 Nm] |
| Voltage | AC/DC 24 V |
