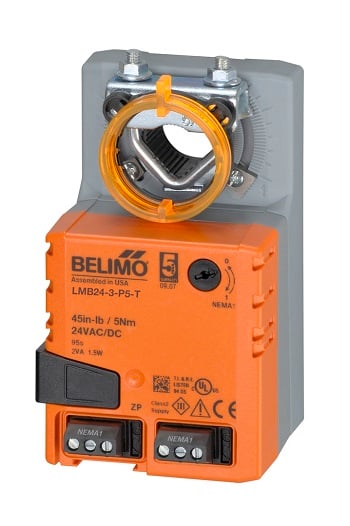

LMB24-3-P5-T Belimo Actuator
$166.60
The Belimo LMB24-3-P5-T is a non-spring return damper actuator featuring terminal strip wiring and built-in feedback. Delivering 45 in-lb of torque, it provides reliable on/off and floating point control for HVAC air dampers.
Overview
The Belimo LMB24-3-P5-T is a non-spring return damper actuator featuring terminal strip wiring and built-in feedback. Delivering 45 in-lb of torque, it provides reliable on/off and floating point control for HVAC air dampers.
Features
- Screw terminal strip connection for easy wiring
- Integrated 5k ohm potentiometer for continuous position feedback
- Brushless DC motor technology with automatic overload protection
- Manual push-button gear release for manual positioning
- Compact footprint suitable for tight HVAC spaces
Specifications
- Nominal Voltage: AC/DC 24 V
- Torque: 45 in-lb [5 Nm]
- Control Signal: On/Off, Floating Point
- Feedback Potentiometer: 5k Ohm
- Connection Type: Screw Terminal Strip
Applications
- Commercial HVAC air damper modulation
- Feedback-monitored airflow control systems
- VAV terminal unit control
| Weight | 7 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Actuator Type | Non Fail-Safe |
| Control Type | Floating/3-point, On/Off |
| Torque | 45 in-lb [5 Nm] |
| Voltage | AC/DC 24 V |
