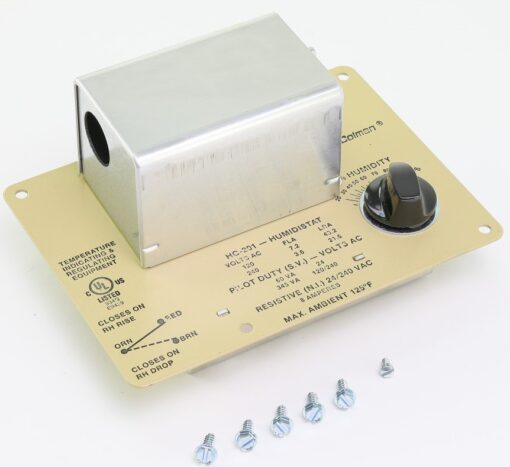

HC-201 Invensys Humidistat
$252.20
Invensys HC-201 Duct Humidistat, 15-95% (8/Case) ***TAC EXPRESS***, Room Humidistat, Two Position, 10 to 90% RH ( Dial Settings ), 5% RH Differential, Nema 1, Beige Plastic with Brushed Bronze Insert
2 in stock
Invensys HC-201 Duct Humidistat, 15-95% (8/Case) ***TAC EXPRESS***
Specifications:
- Control Dial Settings: 15 to 95% R.H.
- Humidity Sensing Element: Nylon ribbon
- Differential: 5% R.H.
- Environment:
- Ambient Temperature Limits,
- Shipping & Storage, -40 to 140°F (-40 to 60°C).
- Operating, 40 to 125°F (4 to 52°C).
- Humidity, 5 to 95% R.H., non-condensing.
- Location, NEMA 1, indoor location only.
- Electrical Switch: Snap-acting SPDT (See Figure 1).
- Connections: Coded screw terminal.
- Cover: Metal.
- Mounting: The outside surface of return air duct. Mounting template and five mounting screws provided.
- Dimensions: 4-3/4″ x 6-1/2″ x 3-1/2″ (121 x 165 x 89)
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 4.75 × 6.5 × 3.5 in |
