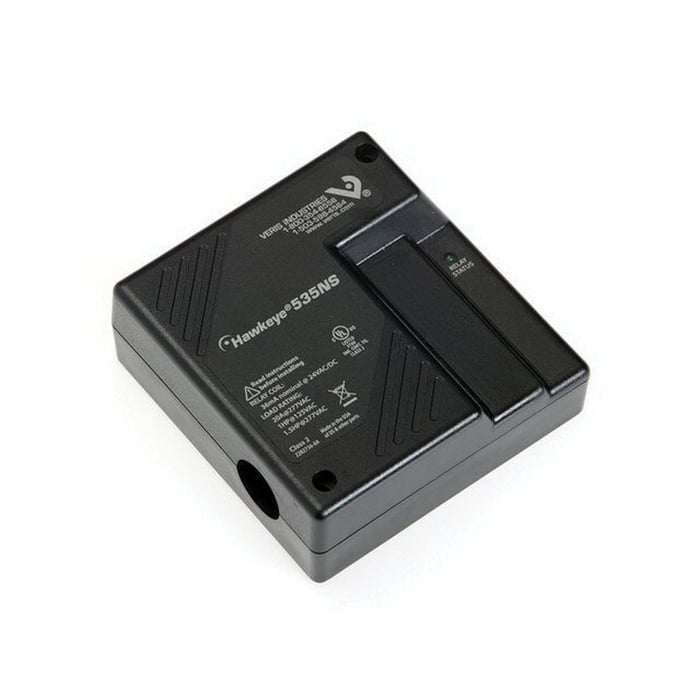

H535NS Veris
$63.50
Relay,20A(r),Relay Coil:24VAC/DC,Relay Cont:1HP@120VAC,1.5HP; Hawkeye 0.25 to 15 A Switching Relay, SPDT
The Veris H535NS Relay,20A(r),Relay Coil:24VAC/DC,Relay Cont:1HP@120VAC,1.5HP
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Current Measurement Range | : | None |
| Current Sensor type | : | Current Transducer, AC, with Relay |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Hand-Off-Auto | : | No |
| Measurement Type | : | AC Current |
| Model | : | H535NS |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Mounting | : | 4 x 4 Box |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 122 °F (-15 – 50 °C) |
| Output Specifications | : | None |
| Outputs | : | Relay |
| Product Certification | : | UL |
| Product Type | : | Sensor |
| Range | : | Motor Control Series |
| Relay Coil Voltage | : | 24 VAC/DC |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | Resistive: 15 A @ 277 VAC | Motor: 1 H.P. @ 120 VAC | Motor: 1.5 H.P. @ 277 VAC |
| Relay Poles/Throw | : | SPDT |
| Setpoint | : | None |
| Warranty | : | 5 years |
FEATURES
The Hawkeye 5xx series combines an industrial grade load switching relay in an easy to install remote enclosure making the series ideal for monitoring, directly controlling and troubleshooting the control wiring of fractional horsepower motors. The relay are combined in a series circuit. Once a 500 is wired in series between the power source and motor, all three components are installed. The housing provides physical separation and multiple wiring exits to isolate control and high voltage wiring. A 500 can be mounted directly on 2 or 4 gang junction boxes, nippled to a field enclosure or stand alone.
- Relay without HOA switch
- Command relay in a single series circuit one line connection for three devices
- Gang box mounting – mounts directly onto gang box, flush to existing enclosures and standalone
- SPST relay is field-selectable for NO or NC operation
- 1 hp at 120 VAC and 1.5 hp at 277 VAC one product for all fractional HP motor control and status applications
- Induced from monitored conductor sensor power
- Relay power LED
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 4 × 2 in |
