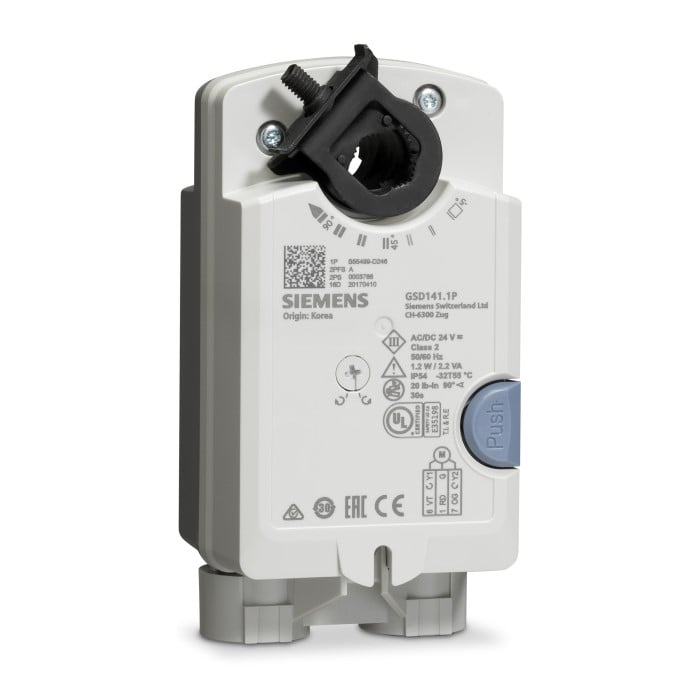

GSD141.1P Siemens Actuator
$99.74
Damper
Actuator 20 lb-in,NSR,Floating
Damper Actuator 20 lb-in 2-position/floating control, non-spring return, 24VAC/DC compatible and plenum rated. Used for low torque VAV applications and small dampers.
Technical Specifications
|
Actuator Type |
Non-spring return |
|
Actuation Style |
Rotary |
|
Control or Fire/Smoke Type |
Control Damper |
|
Plenum or Standard Rating |
Plenum |
|
Torque |
20 lb-in |
|
Fail Safe |
No |
|
Control Signal |
2-position , Floating control |
|
Positioning time |
Runtime for 90° 30 s |
|
Position feedback |
No |
|
Power consumption |
Running: 2.2 VA (1.2 W), Holding: 1.0 VA (0.5 W) |
|
Ambient temperature, operation |
-25 to 130 °F, -32 to 55 °C |
|
Operating voltage |
24 VAC, 24 VDC |
|
Supply Voltage |
24 VAC/DC |
|
Frequency |
50/60 Hz |
|
Auxiliary Switch |
No |
|
Cable length |
3 ft |
|
Dimensions (W x H x D) |
2.83 x 5.86 x 2.45 in |
|
Material, housing |
IP54 enclosure, Plenum rated rugged plastic |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
