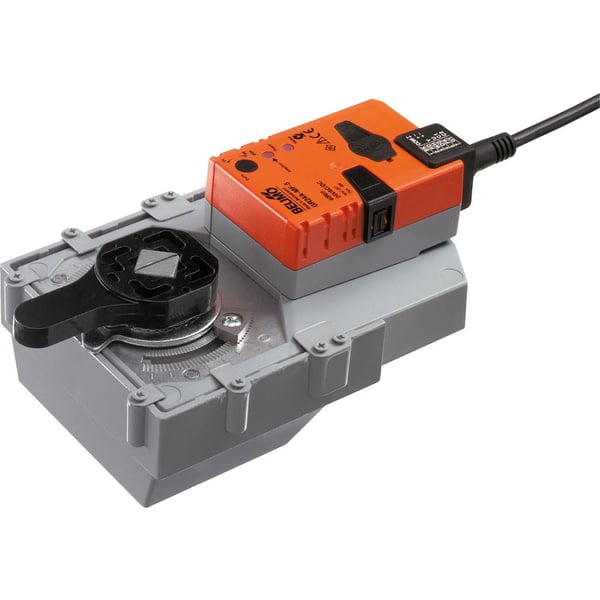

GRCX24-3-T Belimo Valve Actuator
$392.50
Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point
Overview
The Belimo GRCX24-3-T is a non-fail-safe valve actuator designed for high-torque rotary valve applications requiring reliable on/off or floating point control.
Features
- High torque performance for demanding valve automation tasks
- Terminal strip electrical connection for simplified installation
- Weather-resistant NEMA 4/IP66 rated housing option
- Non-fail-safe operation with low power consumption
Specifications
- Torque: 360 in-lb [40 Nm]
- Control Signal: On/Off, Floating Point
- Operating Voltage: AC/DC 24 V
- Electrical Connection: Screw terminals
- Actuator Type: Non-spring return / Non-fail-safe
Applications
- Direct coupling to large rotary HVAC control valves and dampers
- Commercial building automation and climate control systems
| Weight | 7 lbs |
|---|---|
| Dimensions | 13 × 9 × 9 in |
| Actuator Type | Non Fail-Safe |
| Control Type | Floating/3-point, On/Off |
| Voltage | AC/DC 24 V |
