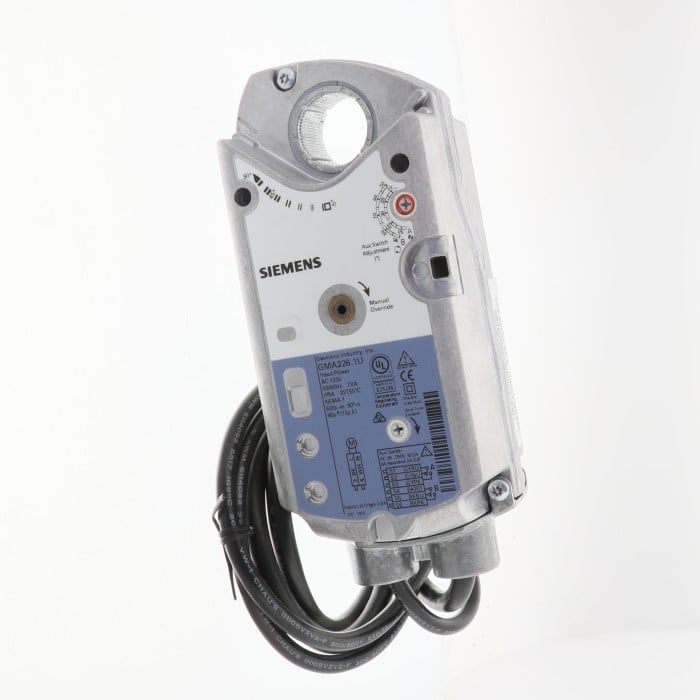

GMA226.1U Siemens Actuator
$268.76
Spring
Return, 62 lb-in (7 Nm), 120 Vac, 2-position Control, 90 sec Run, 2-Aux
OpenAir GMA Series Electric Damper Actuator, spring return, 62 lb-in
Technical Specifications
|
Control or Fire/Smoke Type |
Control Damper |
|
Torque |
62 lb-in |
|
Positioning time |
Open:90 s, Close:15 s |
|
Position feedback |
No |
|
Power consumption |
Running and Holding: 7 VA / 5 W |
|
Ambient humidity, operation |
95 % r.h. |
|
Angular rotation |
90° |
|
Operating voltage |
120 VAC |
|
Frequency |
50/60 Hz |
|
Auxiliary switch |
2 |
|
Cable length |
3 ft |
|
Dimensions (W x H x D) |
3.25 x 8.38 x 2.38 in |
|
Material, housing |
NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
|
Degree of protection |
IP54 |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
