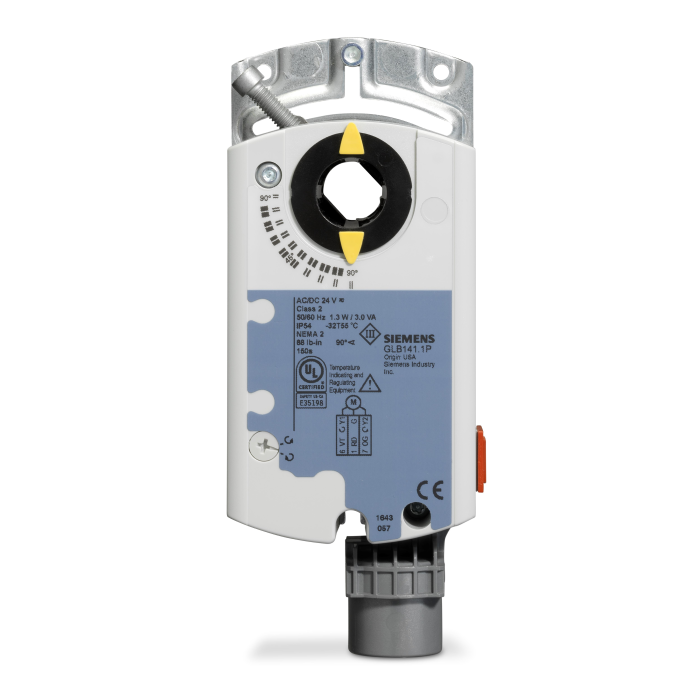

GLB141.1P Siemens Actuator
$131.49
Damper Actuator 88 lb-in 2-position/floating control signal, non-spring return, plenum rated for use in constant or variable air volume installations for control of HVAC dampers.
Damper Actuator 88 lb-in 2-position/floating control signal, non-spring return, plenum rated for use in constant or variable air volume installations for control of HVAC dampers.
Technical Specifications
|
Control or Fire/Smoke Type |
Control Damper |
|
Torque |
88 lb-in |
|
Positioning time |
50 Hz:150 s, 60 Hz:125 s |
|
Position feedback |
No |
|
Power consumption |
2.2 VA, 1.3 W |
|
Ambient humidity, operation |
95 % r.h. |
|
Angular rotation |
90° |
|
Operating voltage |
19.2…28.8 V24 V#AC |
|
Frequency |
50/60 Hz |
|
Cable length |
3 ft |
|
Dimensions (W x H x D) |
2.7 x 6.6 x 2.4 in |
|
Material, housing |
NEMA 2, IP54 per EN60529, durable plastic |
|
Degree of protection |
IP57 |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
