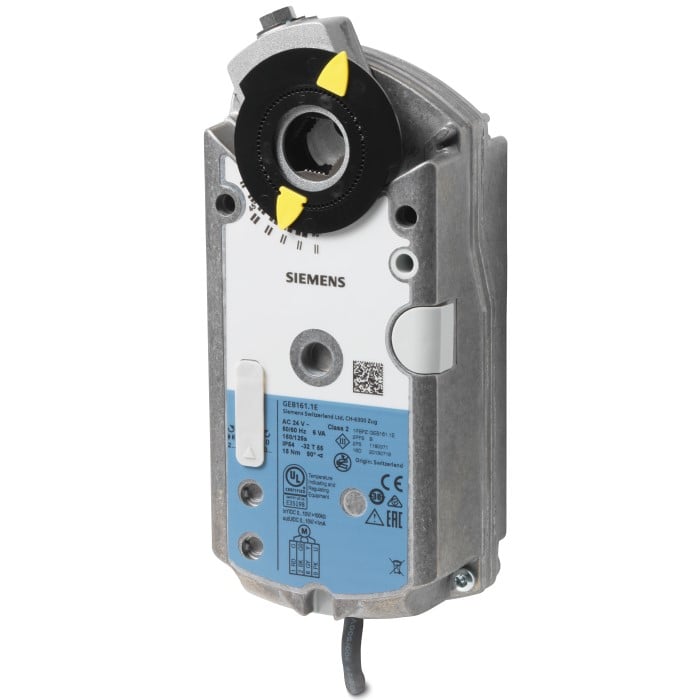

GEB161.1P Siemens Actuator
$316.48
NSR
132 lb-in, 24Vac/dc, 0-10Vdc Control, 125s Run, Feedback, Plenum
OpenAir™ GEB Series Electric Damper Actuator, rotary, non-spring return, 132 lb-in (15 Nm), 24 Vac/dc, 0 to 10 Vdc control, 125 sec run time, plenum rated
Technical Specifications
Control or Fire/Smoke Type | Control Damper |
Torque | 132 lb-in |
Positioning time | 50 Hz:150 s, 60 Hz:125 s |
Position feedback | Yes |
Power consumption | Running: 5 VA / 4 W, Holding: 1 VA / 1 W |
Ambient humidity, operation | 95 % r.h. |
Angular rotation | 90° |
Operating voltage | 24…28.8 V24 V#AC/DC |
Frequency | 50/60 Hz |
Cable length | 3 ft |
Dimensions (W x H x D) | 3.25 x 8.38 x 2.38 in |
Material, housing | NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
Degree of protection | IP67 |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
