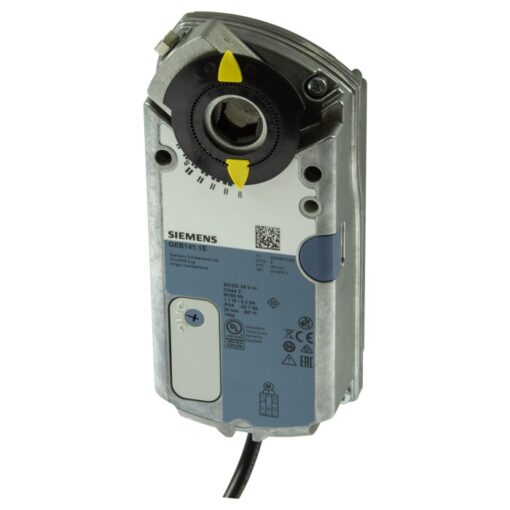

GEB141.1P Siemens Actuator
$210.50
Damper actuator non-spring return, 177 lb-in, 2-position/Floating control. 24VAC/DC and plenum rated . For use on control dampers
Damper actuator non-spring return, 177 lb-in, 2-position/Floating control. 24VAC/DC and plenum rated . For use on control dampers
Technical Specifications
|
Control or Fire/Smoke Type |
Control Damper |
|
Torque |
132 lb-in |
|
Positioning time |
50 Hz:150 s, 60 Hz:125 s |
|
Ambient humidity, operation |
95 % r.h. |
|
Angular rotation |
90° |
|
Operating voltage |
24 VAC |
|
Frequency |
50/60 Hz |
|
Cable length |
3 ft |
|
Dimensions (W x H x D) |
Actuator: 3-1/4 W x 8-3/8 H x 2-3/8 D in. Shaft Diameter: 1/4 to 3/4 in. round, 1/4 to 1/2 in. square; Shaft Length Min: 3/4 in |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
