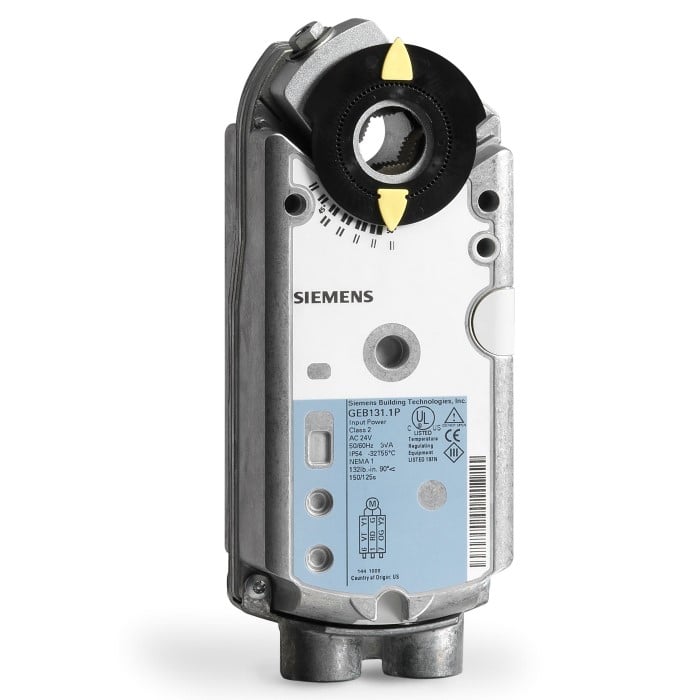

GEB131.1P Siemens Actuator
Non-spring
Return, 132 lb-in, 24Vac/dc, Floating Control, 125sec Run, Plenum
OpenAir™ GEB Series Electric Damper Actuator, rotary, non-spring return, 132 lb-in (15 Nm), 24 Vac/dc, floating control, 125 sec run time, plenum rated
Technical Specifications
|
Control or Fire/Smoke Type |
Control Damper |
|
Torque |
132 lb-in |
|
Positioning time |
50 Hz:150 s, 60 Hz:125 s |
|
Position feedback |
No |
|
Power consumption |
3 VA / 3 W |
|
Ambient humidity, operation |
95 % r.h. |
|
Angular rotation |
90° |
|
Operating voltage |
24…28.8 V24 V#AC |
|
Frequency |
50/60 Hz |
|
Cable length |
3 ft |
|
Dimensions (W x H x D) |
3.25 x 8.38 x 2.38 in |
|
Material, housing |
NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
|
Degree of protection |
IP68 |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
