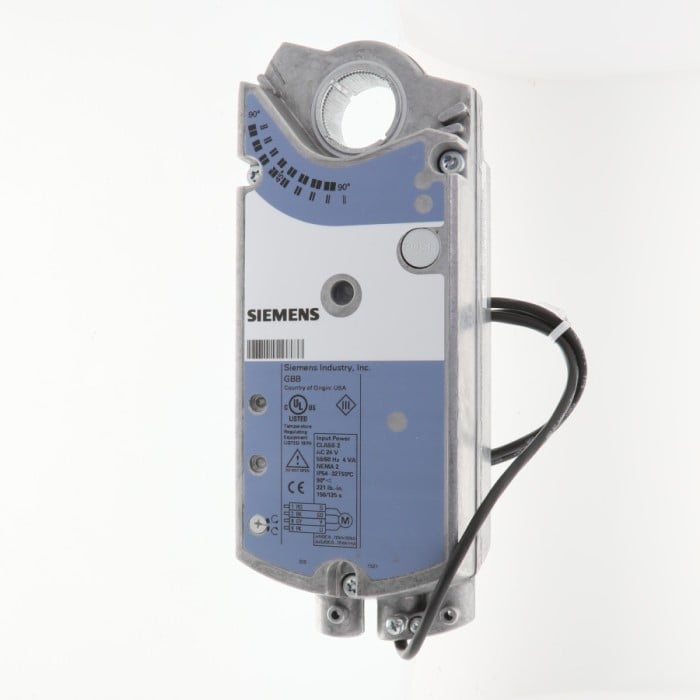

GBB166.1U Siemens Actuator
$306.62
NSR
221 lb-in, 24Vac/dc, 0-10Vdc Control, 125s Run, Feedback, 2-Aux
Function
GBB1..1P / GBB1..1U
OpenAir Damper Actuator, Rotary, NSR, 221 lb-in
OpenAir Damper Actuator, Rotary, Non-Spring Return, 221 lb-in
Technical specifications
|
Actuator Type |
Non-spring return |
|
Actuation Style |
Rotary |
|
Control or Fire/Smoke Type |
Control Damper |
|
Torque |
221 lb-in |
|
Fail Safe |
No |
|
Positioning time |
150 s for 50 Hz, 125 s for 60 Hz |
|
Ambient temperature, operation |
-25 to 130 °F, -32 to 55 °C |
|
Operating voltage |
24 VAC |
|
Supply Voltage |
24 VAC |
|
Frequency |
50/60 Hz |
|
Cable length |
3 ft |
|
Dimensions (W x H x D) |
Actuator: 3-15/16 W x 11-13/16 H x 2-11/16 D in. |
|
Material, housing |
NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
|
Warranty |
5 Years |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
