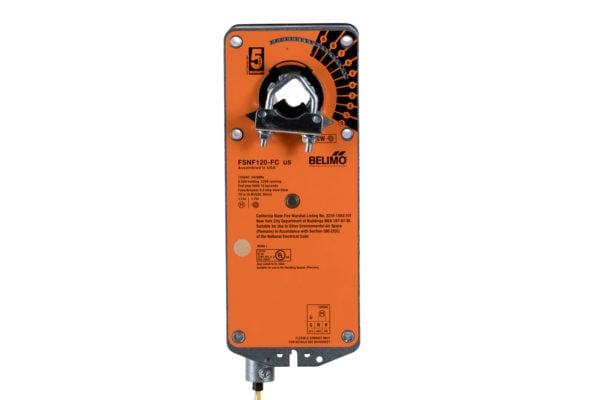

FSNF120-FC Belimo Actuator
$524.20
The Belimo FSNF120-FC is a fast-acting spring return fire and smoke damper actuator engineered to operate reliably under extreme conditions in life safety systems.
Overview
The Belimo FSNF120-FC is a fast-acting spring return fire and smoke damper actuator engineered to operate reliably under extreme conditions in life safety systems.
Features
- Designed specifically for combination fire and smoke damper applications
- Fast fail-safe spring return operation (<15 seconds) for safety shut-off
- Pre-wired 1m appliance cable for convenient electrical connections
Specifications
- Torque: 70 in-lb
- Nominal Voltage: AC 120 V
- Control Type: On/Off
- Actuator Type: Spring Return
- Running Time: <15 seconds
Applications
- Life safety fire and smoke damper regulation in commercial facilities
- Containment and ventilation control in emergency response systems
| Weight | 7 lbs |
|---|---|
| Dimensions | 5 × 12 × 4 in |
| Actuator Type | Spring Return |
| Auxiliary Switch | 2 SPST |
| Torque | 35 in-lb [4 Nm] |
| Voltage | AC 120 V |
