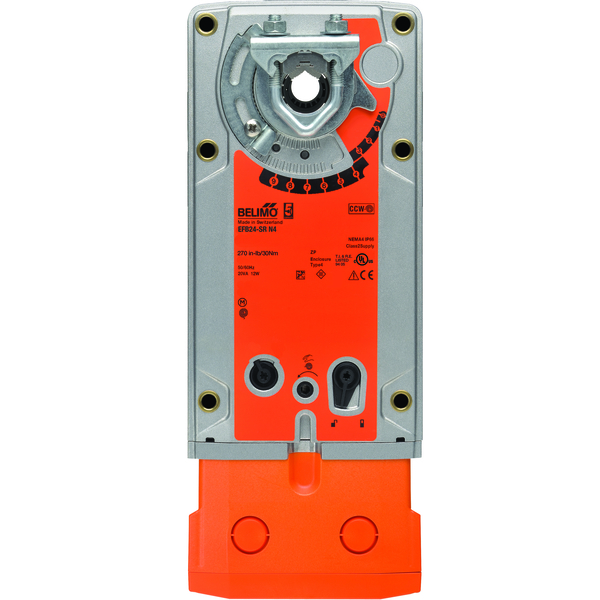

EFB24-SR N4 Belimo Damper Actuator
$891.10
Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2…10 V, NEMA 4, modulating
Overview
The Belimo EFB24-SR N4 is a spring return damper actuator housed in a NEMA 4 enclosure, built for modulating fail-safe damper control in outdoor or harsh environments.
Features
- NEMA 4 / IP66 weatherproof housing protects against moisture and dirt
- Spring return fail-safe operation ensures automatic return upon power loss
- Universal shaft clamp allows direct coupling to damper shafts
Specifications
- Torque: 270 in-lb [30 Nm]
- Nominal Voltage: AC/DC 24 V
- Control Type: Modulating (2…10 VDC)
- Degree of Protection: NEMA 4 / IP66
Applications
- Outdoor damper control in commercial HVAC applications
- Air handling unit control in washdown or high-humidity environments
| Weight | 11 lbs |
|---|---|
| Dimensions | 15 × 7 × 8 in |
| Actuator Type | Spring Return |
| Control Type | Modulating |
| Torque | 270 in-lb [30 Nm] |
| Voltage | AC/DC 24 V |
