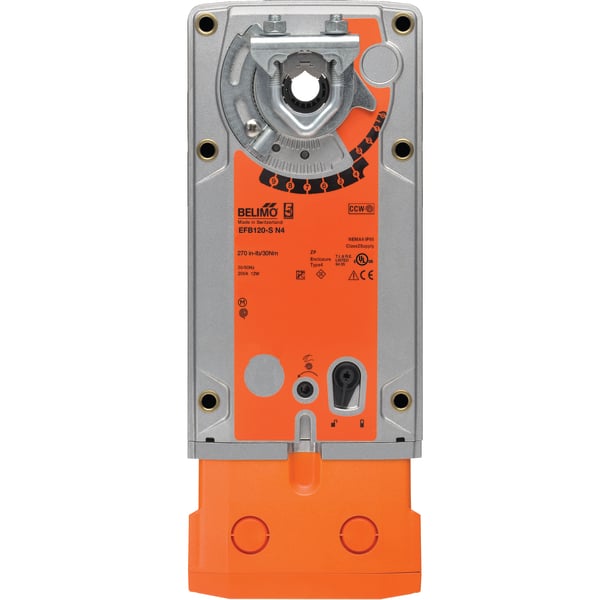

EFB120-S N4 Belimo Damper Actuator
$933.90
Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100…240 V / DC 100…125 V, On/Off, 2 x SPDT, NEMA 4
Overview
The Belimo EFB120-S N4 is a line voltage spring return damper actuator enclosed in a NEMA 4 weatherproof housing, offering high torque and built-in auxiliary switching for severe outdoor conditions.
Features
- NEMA 4 / IP66 outdoor-rated enclosure protects against water, ice, and dust
- Line voltage operation (100 to 240 VAC) for direct main power supply
- Powerful 270 in-lb torque output for large damper blades
- Auxiliary switches provided for status monitoring and control interlocks
Specifications
- Torque: 270 in-lb [30 Nm]
- Nominal Voltage: AC 100 to 240 V
- Control Type: On/Off
- Actuator Type: Spring Return with Auxiliary Switch
- Enclosure Rating: NEMA 4 / IP66
Applications
- Outdoor damper control on rooftop units and exterior ventilation louvers
- Fail-safe damper actuation in harsh industrial environments
| Weight | 7 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Actuator Type | Spring Return |
| Auxiliary Switch | 2 x SPDT |
| Control Type | On/Off |
| Torque | 270 in-lb [30 Nm] |
| Voltage | AC 120 V |
