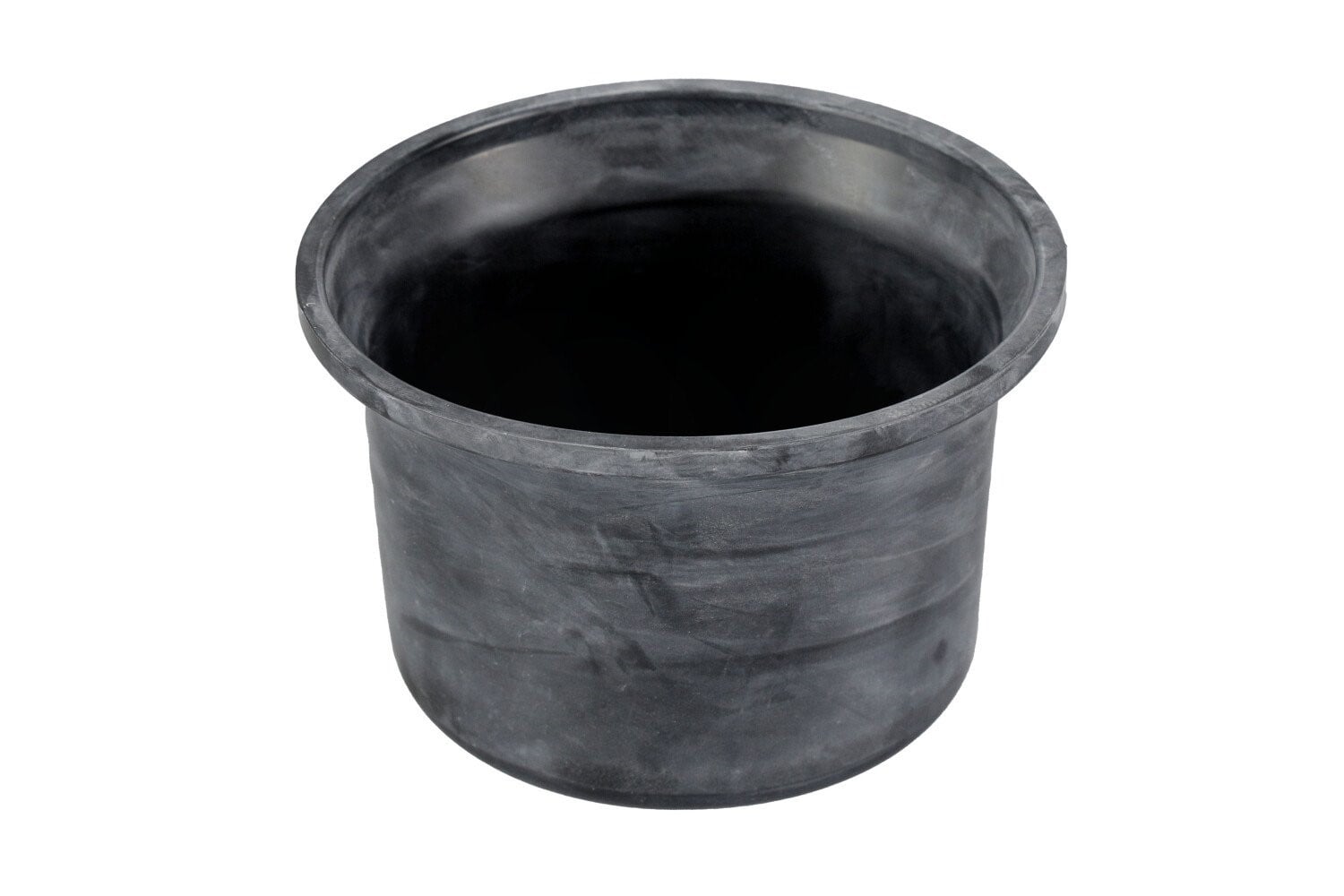

D-3153-600 Johnson Controls Damper Actuator Diaphram

Overview

The Johnson Controls D-3153-600 is a genuine OEM replacement diaphragm designed specifically for the D-3153 series pneumatic piston damper actuators used in commercial HVAC and building automation systems. This single-piece replacement part is engineered to restore proper operation, precise control response, and optimal pressure levels when the original diaphragm becomes worn, cracked, or loses its seal. Utilizing a replacement diaphragm offers a cost-effective alternative to replacing the entire actuator assembly.

Features

• Genuine Johnson Controls OEM replacement part ensuring precise fit and performance
• Made from a durable synthetic elastomer engineered to withstand demanding HVAC environments
• Single-piece construction allows for a straightforward installation process
• Restores factory-specification pressure response and actuator travel to degraded units
• Helps maintain consistent air pressure levels crucial for pneumatic control systems

Specifications

• Manufacturer: Johnson Controls
• Part Number / SKU: D-3153-600
• Type: Diaphragm Replacement (Single Piece)
• Material: Synthetic elastomer
• Effective Diaphragm Area: 15 sq in (97 sq cm)
• Net Weight: 0.23 lbs

Applications

The D-3153-600 replacement diaphragm is designed for use in compatible Johnson Controls D-3153 series pneumatic damper actuators. These multipurpose positioning devices are primarily used to operate ventilating systems, commercial HVAC control valves, and safety dampers in public or commercial buildings, responding effectively to output signals from pneumatic controllers or electro-pneumatic transducers.
