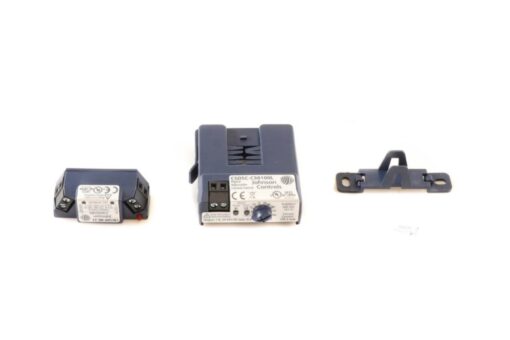

CSDSC-C50100L1 Johnson Controls Current Switch

Overview

The Johnson Controls CSDSC-C50100L1 is a self-calibrating, split-core current switch designed to provide reliable verification of electrical equipment operation. It features a single-turn dial to select motor full load amps, eliminating the need for live calibration and reducing installation time. This model includes an integrated normally open command relay to facilitate starting and stopping the monitored load.

Features

• Split-core clamp design fits into tight enclosures without disconnecting wires
• Self-calibrating single-turn dial eliminates live testing and simplifies configuration
• Integrated N.O. command relay provides 10 A at 125 VAC switching power with a 24 VAC/VDC coil
• LED indicators allow easy local tracking of switch and relay status
• Polarity insensitive output simplifies control loop wiring
• Low 0.50 A minimum turn-on extends utility to sub-fractional motors

Specifications

• Minimum Sensed Current: 0.50 A
• Maximum Sensed Current: 100 A
• Status Output: Normally Open, 1.0 A at 30 VAC/VDC
• Relay Contact Rating: 10 A at 125 VAC
• Relay Actuation Coil: 24 VAC/VDC, 15 mA
• Isolation Voltage: 600 VAC rms (UL), 300 VAC rms (CE)
• Operating Temperature Range: 5 to 140°F (-15 to 60°C)
• Frequency Range: 50/60 Hz

Applications

• Reliable verification of electrical equipment operation including fans and pumps
• Monitoring status of heating coils, blowers, and lighting loads
• Integrated starting, stopping, and status monitoring of HVAC motors
• Building automation system digital inputs requiring true load verification
