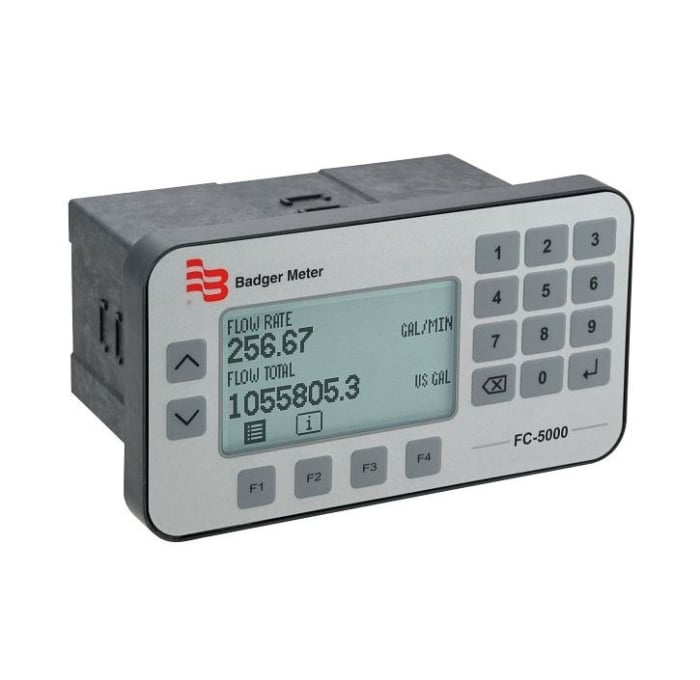

BGR-FC5-BM-P1-FA6A-W Veris BTU Monitor (Badger)
Programmable BTU Monitor, Freq Out, BACnet/Modbus, Wall
Flow,Monitor,BTU,Freq,4-20mA,MB/BN,Wall
Programmable BTU Monitor, Freq Out, BACnet/Modbus, Wall
SPECIFICATIONS
| Application | : | Flow and BTU |
| Communication | : | EIA-485 (RS-485), Modbus, BACnet, USB |
| Display Type | : | 128 × 64 pixel LCD graphical display, LED backlit |
| Keypad | : | Membrane overlay, domed tactile response keys, keypad interface is protected from ESD |
| Mounting | : | Wall |
| Operating Humidity | : | 0 to 85%, non-condensing |
| Operating Temperature | : | 32 to 130° F (0 to 55° C) |
| Output Frequency Range | : | TTL, 1 to 4000 Hz, square wave; Uncertainty: ±0.01% reading; Resolution: 0.01 Hz |
| Power Consumption | : | 8 W (power supply must provide 8 W min.) |
| Product Type | : | BTU Monitor |
| Range | : | FC-5000 Series |
| Relay Configuration | : | One Form C mechanical relay and one Form A solid state relay |
| Relay Contact Ratings | : | Form C Relay : 5A (N.C. or N.O.), 5 to 24 Vdc; Form A Relay: 1A, 60V |
| Standards | : | CE, UL 61010-1 and ANSI/ISA- 61010-1 |
| Supply Voltage AC Range | : | 9 to 28Vac RMS (50 to 60 Hz) |
| Supply Voltage DC Range | : | 10 to 40Vdc |
| Totalizer Resetable | : | Yes |
| Warranty | : | 1 year |
FEATURES
The Badger Meter® FC-5000 is a microprocessor-driven device designed for energy/BTU and flow monitoring. The FC-5000 BTU Monitor is compatible with the complete line of Badger Meter industrial flow meters and temperature sensors, creating a solution to monitor hydronic energy usage, flow rate and totals. Many years of experience in the industrial market has allowed Badger Meter to incorporate features indispensable in control operations
| Weight | 10 lbs |
|---|---|
| Dimensions | 13 × 9 × 9 in |
