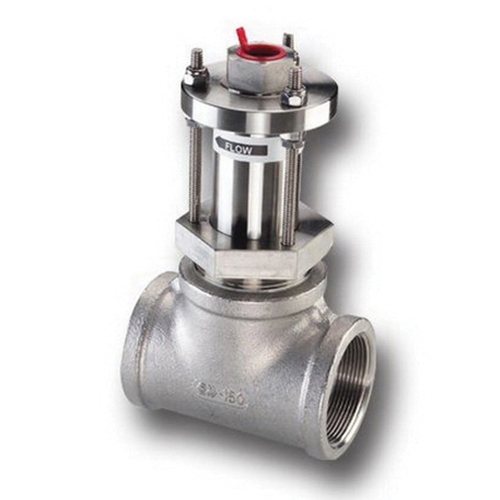

BGR-8228BR2505-1211 Veris Flow Sensor (Badger)
Flow,Sensor,Insert,Brass,2.5in Brz Tee
Flow,Sensor,Insert,Brass,2.5in Brz Tee
SPECIFICATIONS
| Application | : | Flow |
| Fitting Material | : | Brass | Steel | Polymer |
| Fitting Size | : | 2″ NPT |
| Fitting Type | : | Threaded |
| Flow Measurement Accuracy | : | ±1% of F.S. |
| Flow Measurement Range | : | 0.5 – 30 ft/s (0.2 – 9 m/s) |
| Flow Measurement Repeatability | : | ±0.3% of F.S. |
| Flow Sensor Type | : | Impeller |
| Hot-Tap Option | : | No |
| Medium | : | Water based liquids |
| Operating Fluid Temperature | : | Rated 221 °F (105 °C) continuous |
| Outputs | : | Frequency output |
| Pipe Material | : | Copper | Polymer | Steel | Stainless Steel |
| Product Certification | : | CE Equipment Class A EN 50082-2 and EN 55016 |
| Product Type | : | Sensor |
| Range | : | 228 Series |
| Warranty | : | 1 year |
FEATURES
These sensors can be purchased with a bronze tee. Sensor output is a frequency that indicates flow rate. Used in conjunction with a compatible flow monitor or transmitter, these non-magnetic flow sensors provide an accurate reading of the rate of liquid flow, as well as total accumulated flow.
- Signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
- Six-bladed impeller design with a proprietary, non-magnetic sensing mechanism for high accuracy and repeatability, forward-swept impeller is less prone to fouling by water-borne debris, reliable performance with minimal downtime
- PPS electronics housing
- Standard electronics
- Pennlon bearing, nylon impeller, tungsten carbide shaft, EPDM O-rings
| Weight | 5 lbs |
|---|---|
| Dimensions | 13 × 9 × 9 in |
