B240+ARQX24-MFT Belimo Valve Actuator Combination
$652.80

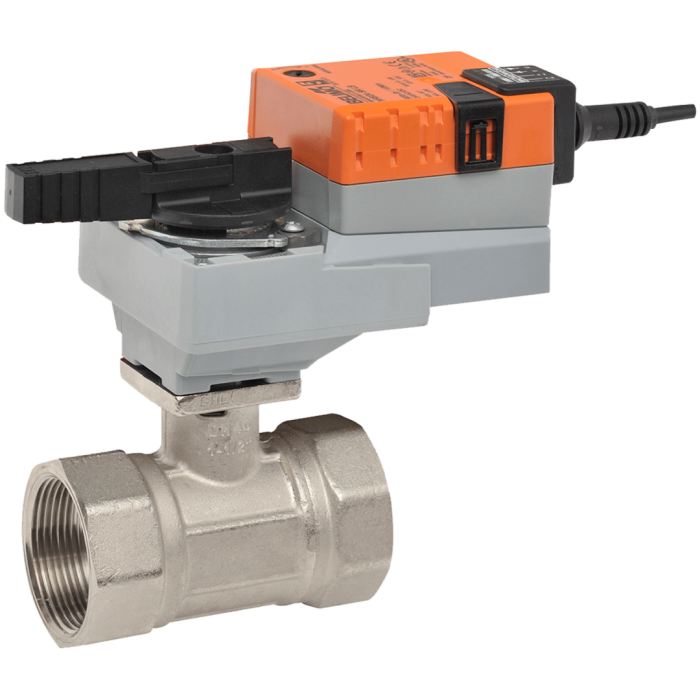

The Belimo B240+ARQX24-MFT is a 1 1/2-inch 2-way characterized control valve (CCV) assembly paired with a non-fail-safe programmable MFT actuator.
Overview
The Belimo B240+ARQX24-MFT is a 1 1/2-inch 2-way characterized control valve (CCV) assembly paired with a non-fail-safe programmable MFT actuator.
Features
- Equal percentage flow characteristic for smooth, precise control
- Multi-Function Technology (MFT) for configurable control inputs
- Non-fail-safe actuator design with 2-10V control signal
- High Cv rating of 37 for high-flow commercial hydronic applications
Specifications
- Valve Type: 2-way Characterized Control Valve (CCV)
- Valve Size: 1 1/2″
- Flow Capacity: Cv 37
- Actuator Type: Non fail-safe
- Voltage: AC/DC 24 V
- Control Signal: 2…10 V, MFT / Programmable
Applications
- Modulating water flow control in heating and cooling coils
- Temperature regulation in commercial HVAC air handling units
| Weight | 5 lbs |
|---|---|
| Dimensions | 13 × 13 × 9 in |
| Actuator Type | Spring Return |
| Control Type | MFT/Programmable |
| Torque | 180 in-lb [20 Nm] |
| Voltage | AC/DC 24 V |
