AV-7600-1 Invensys Linkage

Datasheet

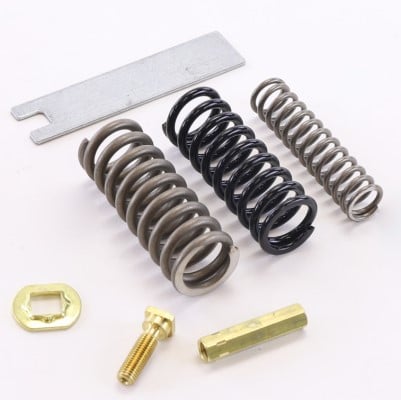

Invensys AV-7600-1 Hydraulic Actuator Linkage Kit for Mx-5000 to VB-7xxx (1/2″-2″)

The AV-7600-1 valve linkage kit is used to field assemble MA-521x, MF-5×13, MP-521x, MP-541x, MP-551x, MPR-561x, and MPR-571x round hydraulic actuators to 1/2” through 2″ VB-7xxx series valve bodies only.

Features

• Provides direct couple interface between MA, MF, MP, and MPR-5xxx actuators and valve bodies.
• Kit fits all VB-7xxx series valve bodies.
• Optimized linkage springs for maximum close off.
