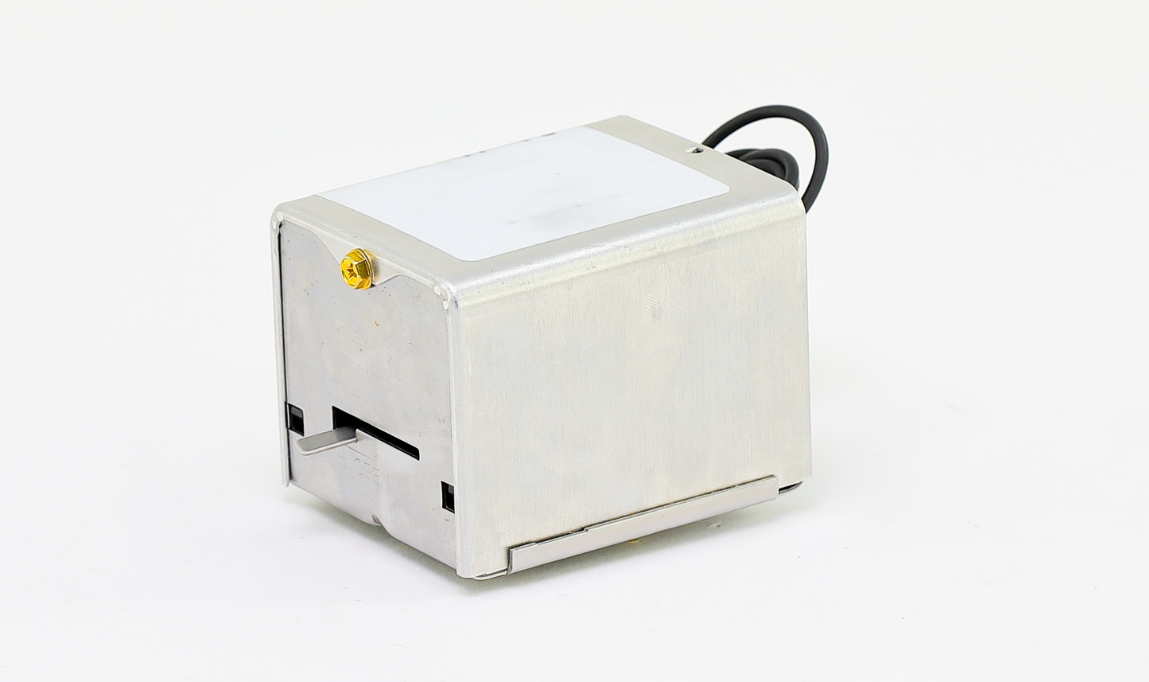

AH14D020 Invensys Actuator
Invensys AH14D020 Motor,Actuator, 208Vac, Two Position, Spring Return, Normally Closed, High Close Off, High Temperature, and 18″ Wire Leads; Elec, 2Pos, SR, 208 VAC, App, Rotary, N1
Invensys AH14D020 Two Position Actuator, 208V, HCO, N.C., High Temp, 18″ Leads
Product Description
The Erie™ Modulating PopTop™ Series valve actuator assemblies are designed for closed hydronic heating and cooling systems. The Modulating PopTop is used to control fluid flow in fan coil units, VAV reheat, unit ventilators, AHUs and radiant applications
The Modulating PopTop Proportional (P) type is compatible with any 0 to 10 Vdc or 4 to 20 mA signal with jumper selectable operating range and action resulting in precise positioning. The floating (T) type is compatible with any 24 Vac three-wire signal when three minute time-out logic resides in the valve actuator or system controller
Actuator: (AH14D020):
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 208 VAC
- Leads and Connections: 18 in Appliance
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: AH
- Actuator Use: Zone Valves
| Actuator Type | Electric |
| Actuator Use | Zone Valves |
| Auxiliary Switch | 2 |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Control Signal | 2-Position (On/Off) |
| IP Protection Rating | IP10 |
| Lead Length | 18 in |
| Leads and Connections | Appliance |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Power Input Voltage | 208 VAC |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | AH |
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 6 × 3 in |
