SPECIFICATIONS
| Application Zone | : | Plant Room |
| Application | : | Building Automation Systems |
| Color | : | Yellow |
| Model | : | AA48 |
| Operating Humidity | : | 0 – 90% RH, non-condensing |
| Operating Temperature | : | 32 – 122 °F (0 – 50 °C) |
| Outputs | : | Relay |
| Product Certification | : | UL |
| Range | : | AA48 |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 1 H.P. @ 120 VAC | Tungsten: 15 A @ 120 VAC | Balast: 20 A @ 277 VAC |
| Relay Poles/Throw | : | SPST |
| Warranty | : | 1 year |
FEATURES

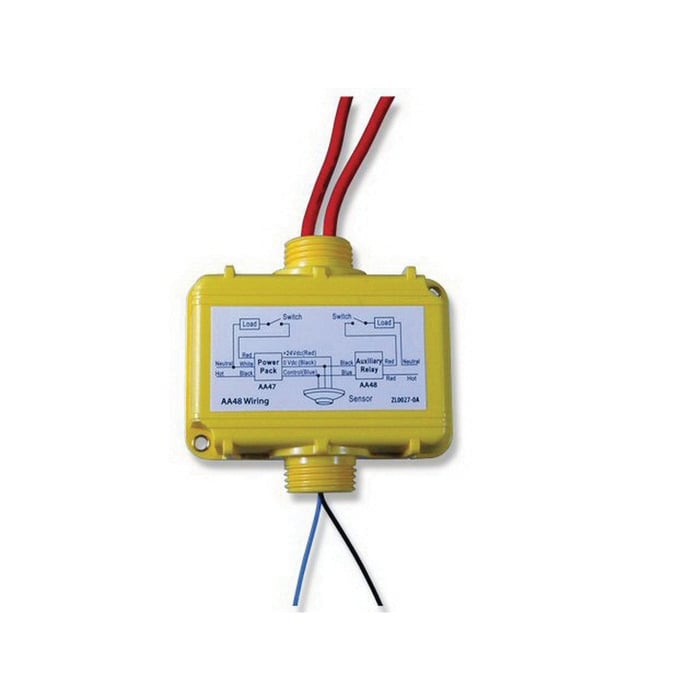

The AA48 auxiliary relay is a low-voltage relay device that expands the switching capacity of an AA47 power pack, controlling additional circuits in response to a signal from an MSC occupancy sensor. The relay has an SPST, normally open output that is controlled directly by the MSC. The relay is rated for maximum 15 A tungsten and 20 A ballast loads. Mount the AA48 either inside or outside a standard junction box using a 1/2 in, threaded EMT nipple. Route power to the sensor using plenum-rated cable.
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 4 × 3 in |
