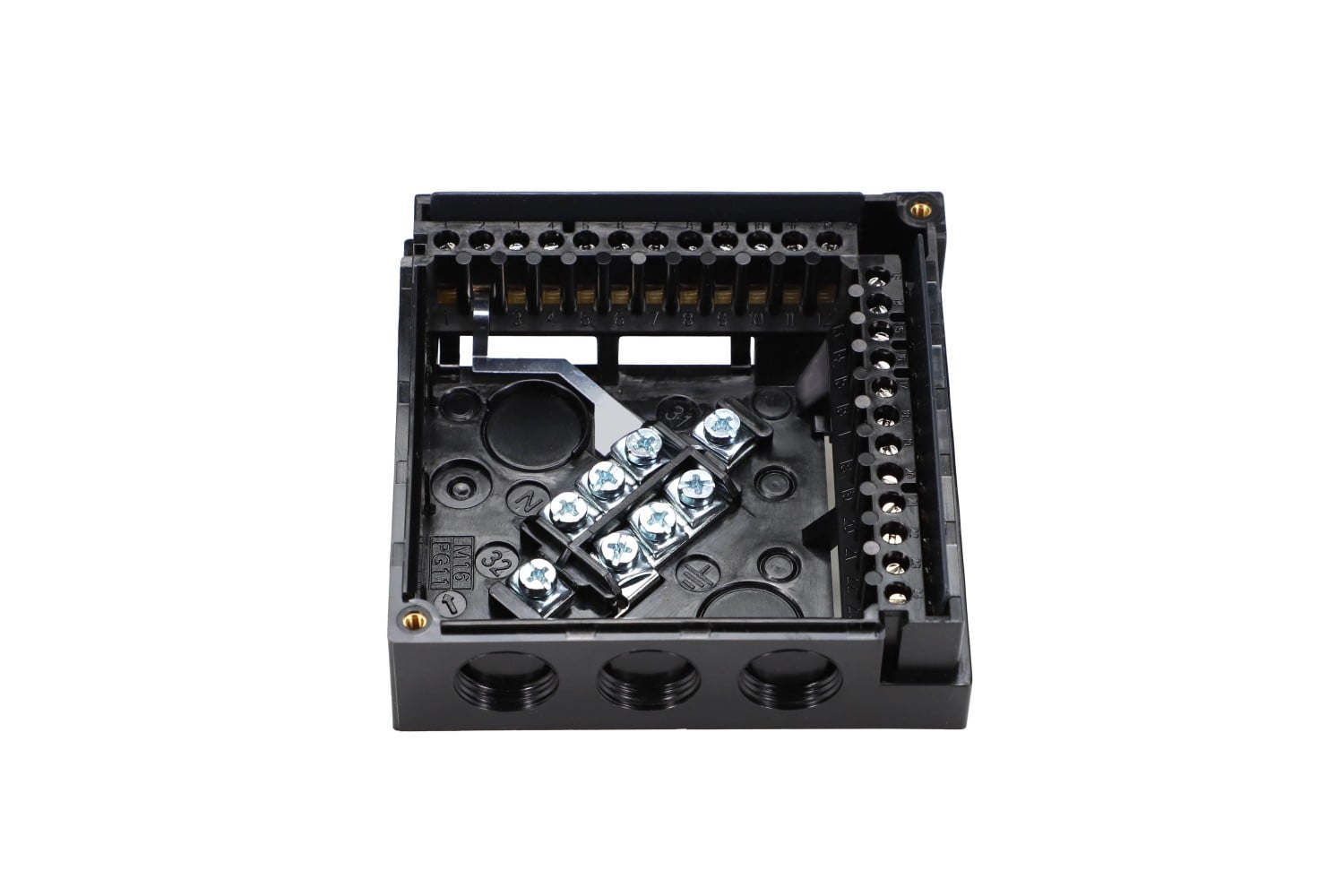

60-2981-1 Fireye Wiring Base

Overview

The Fireye 60-2981-1 is a high-reliability open wiring base designed to provide a secure mounting and electrical foundation for Fireye BurnerPRO and BurnerLogix control systems. Engineered for industrial and commercial combustion applications, this subbase features an integrated terminal block that ensures organized, low-resistance connections for flame safeguard sequencing. Its open architecture facilitates easy access for diagnostic testing and maintenance without requiring full disassembly of the control system.

Features

• Integrated terminal block with heavy-duty screw terminals for clean and secure point-to-point wiring.
• Pre-formed PG11 knockouts provide flexible orientation options for high-voltage and low-voltage conduit entry.
• Equipped with a grounding leash/finger to ensure electrical safety and proper shielding.
• Constructed from high-grade thermoplastic materials to withstand the thermal demands of boiler room environments.
• Open base design simplifies component installation and allows for efficient heat dissipation.

Specifications

• Model Number: 60-2981-1
• Dimensions: 4.1 inches L x 4.1 inches W x 1.2 inches H (107mm x 107mm x 31mm)
• Weight: Approximately 0.4 lbs to 0.54 lbs
• Knockout Type: PG11 (7.5mm OD)
• Mounting: Two-screw mounting (recommended #10 pan head screws)
• Protection Category: IP40 (when integrated with a compatible control box)
• Compatibility: Designed for Fireye BurnerPRO (BP110/BP230) and BurnerLogix (YB110/YB230) modules

Applications

The Fireye 60-2981-1 is primarily used in industrial and commercial burner management systems to provide a stable wiring interface for flame safeguard controls. It is ideal for process burners, pilot burners, duct burners, and refinery applications. It is commonly employed in HVAC installations where efficient organization of control wiring is critical for the safe operation of heating and boiler systems.
