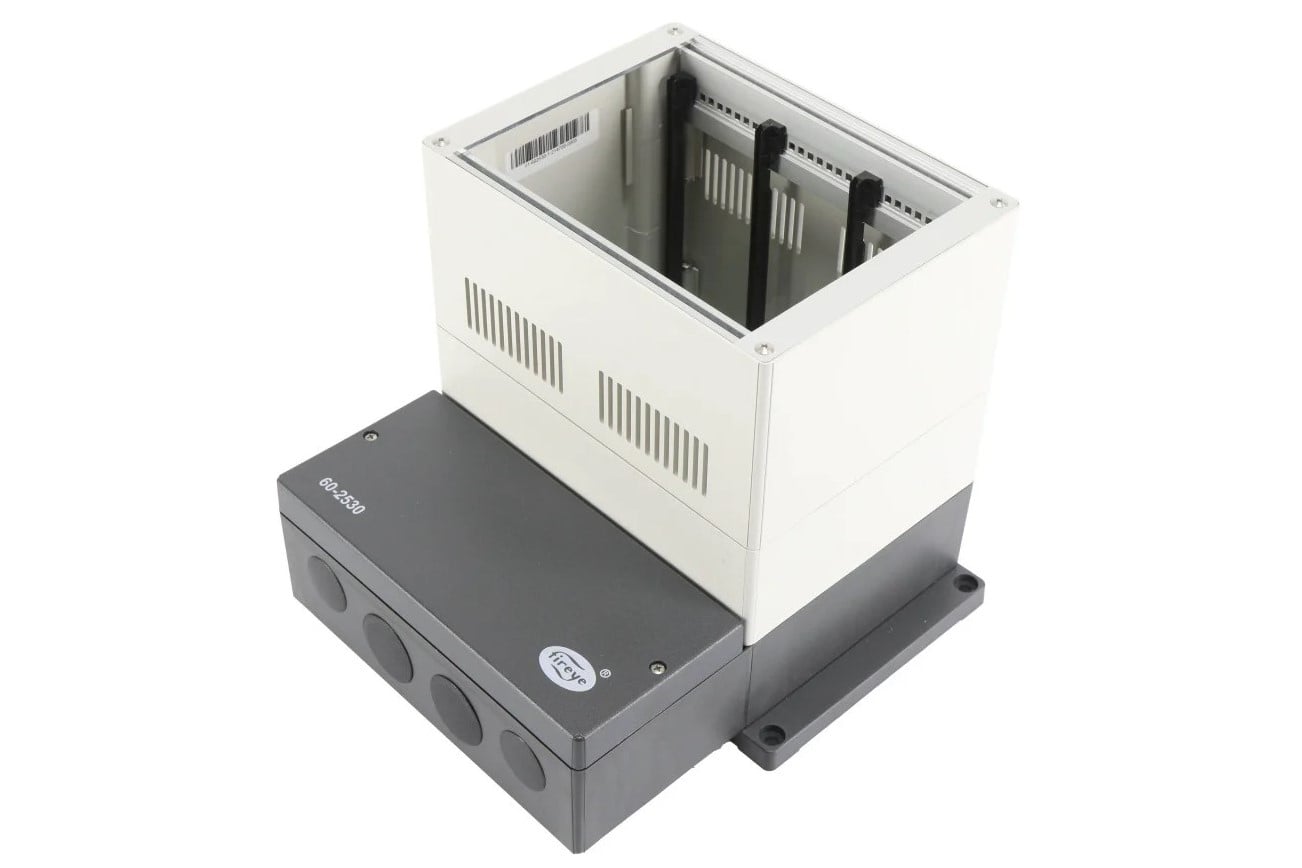

60-2530-1 Fireye RACK

Overview

The Fireye 60-2530-1 is a surface-mount wiring rack designed to provide a structured and secure mounting platform for Fireye flame safeguard components. Specifically engineered for industrial burner management applications, it serves as a central housing unit that organizes amplifier systems and power supplies, ensuring a clean wiring layout and reliable operation in demanding combustion environments. This rack is a critical accessory for integrating modular flame detection components into a cohesive safety system.

Features

• Surface mount design for easy installation on control panels or walls.
• Dual amplifier capacity, accommodating up to two Fireye 25SU3 series amplifiers.
• Dedicated slot for one 19MPS-2000 multi-purpose power supply.
• Heavy-duty construction built to withstand industrial boiler and furnace room conditions.
• Facilitates improved control panel organization and simplified maintenance access for technicians.
• Structured wiring support with built-in connectors to ensure stable electrical interfaces between modules.

Specifications

• Model Number: 60-2530-1
• Mounting Type: Surface mount with four integrated mounting holes.
• Capacity: 3 slots (typically 2 for amplifiers, 1 for power supply).
• Compatible Amplifiers: 25SU3-2000, 25SU3-2100.
• Compatible Power Supply: 19MPS-2000.
• Agency Approvals: FM Approved and CSA Approved (Note: Must be mounted in a CSA-approved cabinet for CSA compliance).
• Shipping Weight: Approximately 3 to 4 lbs (1.4 to 1.8 kg).

Applications

The 60-2530-1 is used in industrial and commercial combustion systems, including boilers, furnaces, and kilns. It is the primary mounting solution for Fireye 25SU3 flame safeguard systems where a standard 19-inch rack is not preferred or available. It is ideally suited for burner management systems (BMS) that require a compact, surface-mounted arrangement to monitor flame signals from various UV or IR scanners.
