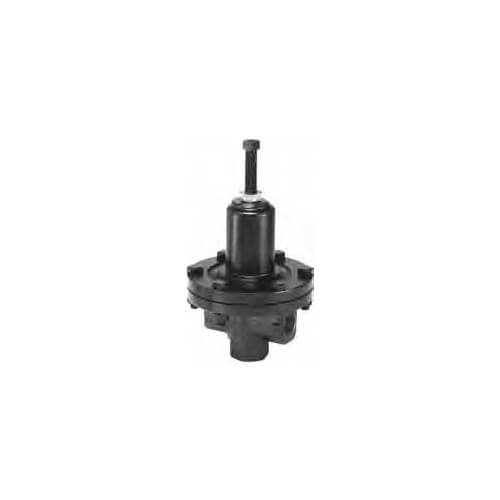

403055 Hoffman Pressure Reducing Valve
The Hoffman 403055 754 PRV REG 1 IN 40-100PSI Pressure Reducing Valve
The Hoffman 403055 754 PRV REG 1 IN 40-100PSI Pressure Reducing Valve
The Series 754 is designed for applications such as commercial kitchens, labs, dry cleaners, or others that require system pressure reduction of steam in small equipment.
- For steam service
- For controlling steam pressure, where an accurate tight
- closing valve is required, on applications such as:
- Small sterilizers
- Cooking kettles or tables
- Hand irons
- Heating coils
- Coffee urns
- Unit heaters and pressing machines
- Adjustable outlet pressure
- Single seated for dead-end or continuous service
- Sizes 1⁄2″ – 1″ NPT
- Maximum pressure drop 100 psi (6.9 bar) – for more
- than 100 psi (6.9 bar) use multiple valves in series
- Minimum reduced pressure 1 psig (.069 bar)
- Maximum non-shock pressure 250 psig (17.3 bar) at
- 400°F (204°C)
- Maximum temperature 400°F (204°C)
| Weight | 8 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
