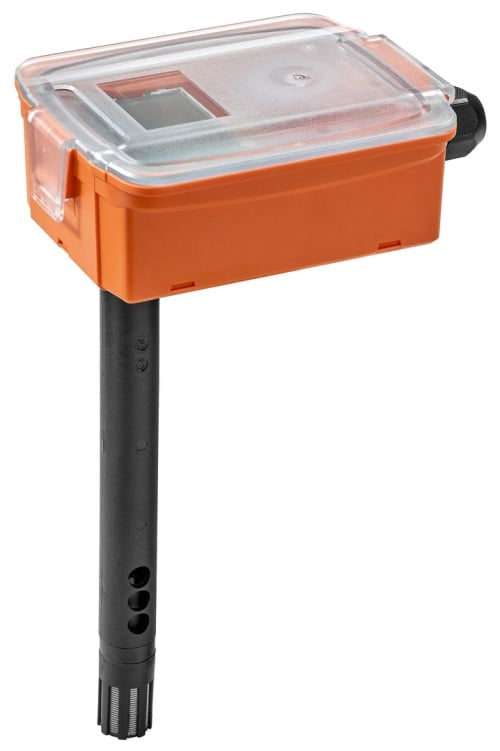

22DTM-1106 Belimo Sensor
$581.90
The Belimo 22DTM-1106 is a multi-function active duct sensor with an integrated LCD display, measuring CO₂, humidity, and temperature. It provides demand-controlled ventilation with real-time local display readings.
Overview
The Belimo 22DTM-1106 is a multi-function active duct sensor with an integrated LCD display, measuring CO₂, humidity, and temperature. It provides demand-controlled ventilation with real-time local display readings.
Features
- Integrated LCD display for local real-time measurement monitoring
- Multi-parameter active sensing: CO₂, relative humidity, and temperature
- Dual-channel NDIR CO₂ technology to prevent measurement drift
- Selectable 0…5 V / 0…10 V analog outputs for all parameters
Specifications
- Display Type: LCD
- Measured Values: CO₂, Humidity, Temperature
- Probe Length: 7 inches [180 mm]
- Output Signal Active: 0…5 V, 0…10 V
- Enclosure Rating: NEMA 4X / IP65
Applications
- Demand-controlled ventilation (DCV) with visual monitoring
- Multi-variable air quality monitoring in commercial air ducts
| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
