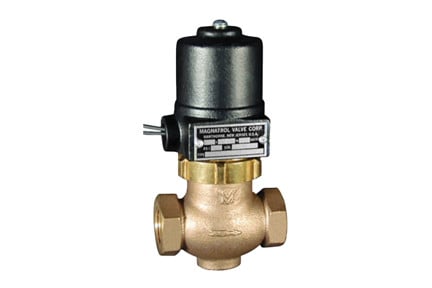

18A23 Magnatrol Solenoid Valve (G18A23SC-ACBW)

18A23 Magnatrol Solenoid Valve (G18A23SC-ACBW) 3/4″npt NC 120V 0/50# 212F LIQ

Overview

The Magnatrol 18A23 is a discontinued two-way, full port, bronze solenoid valve designed for general purpose fluid control. It features a Normally Closed (N/C) operation, meaning the valve opens when the coil is energized (Energize to Open) and closes when power is de-energized. This internal pilot-operated or direct-acting valve is designed to operate from zero to its maximum differential pressure, requiring no differential pressure to open. It is constructed to be packless, ensuring dependable service.

Features

• Operation: Normally Closed (N/C), opening upon coil energization.
• Construction: Cast Bronze body with Globe Pattern, NPT ends, and packless design.
• Full Port: Provides a straight-thru design for flow.
• Coil: Encapsulated Class B coil is standard (Class H available) and designed for continuous duty with both AC and DC voltages.
• Pressure Operation: No differential pressure is required for the valve to open.
• Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top.

Specifications

• Part Number: 18A23
• Pipe Size: 3/4″ NPT
• Maximum Differential Pressure (Max Diff PSI): 50 PSI
• Control Voltage (Standard AC): 120 VAC, 60 HZ
• Power Rating: 25 Watts AC / 18 Watts DC
• Maximum Fluid Temperature: 212° F
• Body Material: Bronze
• Weight: Approximately 6.50 lbs (Shipping weight is 8 lbs)

Applications

The 18A23 solenoid valve is used to control the flow of general service fluids, including Water, Oil, Air, Gas, Solvents, Brine, and Vacuum. It is suitable for any fluids that are not reactive with the construction materials and are free of sediment. It is a general-purpose valve often used in HVAC and process control systems.
