UGVL+SVKB24-MFT Belimo Actuator
$717.00
Retrofit valve linkageFor Universal Globe Valve with LV and SV Series Actuators|Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2…10 V, MFT/programmable

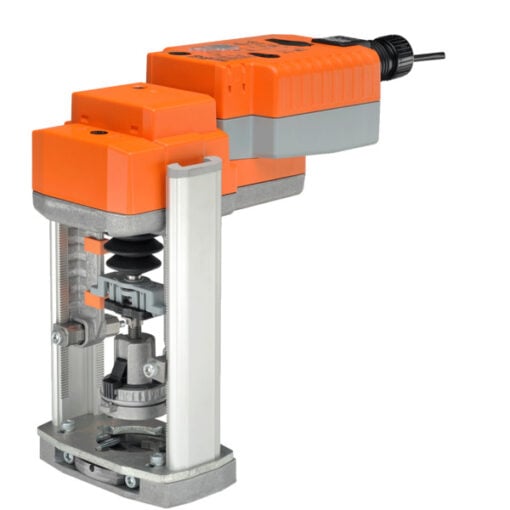

The Belimo UGVL+SVKB24-MFT actuator w/ linkage
Default/Configuration
The default set up for a UGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the valve.
Specifications
- Actuator Type
- Electronic fail-safe
- Application
- Retrofit
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54
- NEMA 2
- UL Enclosure Type 2
- Electrical Connection
- Cable
- Force
- 340 lbf [1500 N]
- Gateways
- UK24BAC
- UK24MOD
- UK24LON
- Manual Override
- 4 mm hex crank (shipped w/actuator)
- Power Consumption (Running)
- 3 W
- Product Type
- Combo
- Protection category
- IP54
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- Default 90 s
- variable 35…150 s
- Stroke
- 6″ [15 mm] LV
- 3/4″ [20 mm] SV
- Voltage AC/DC
- AC/DC 24 V
| Weight | 9 lbs |
|---|---|
| Dimensions | 12 × 11 × 5 in |
