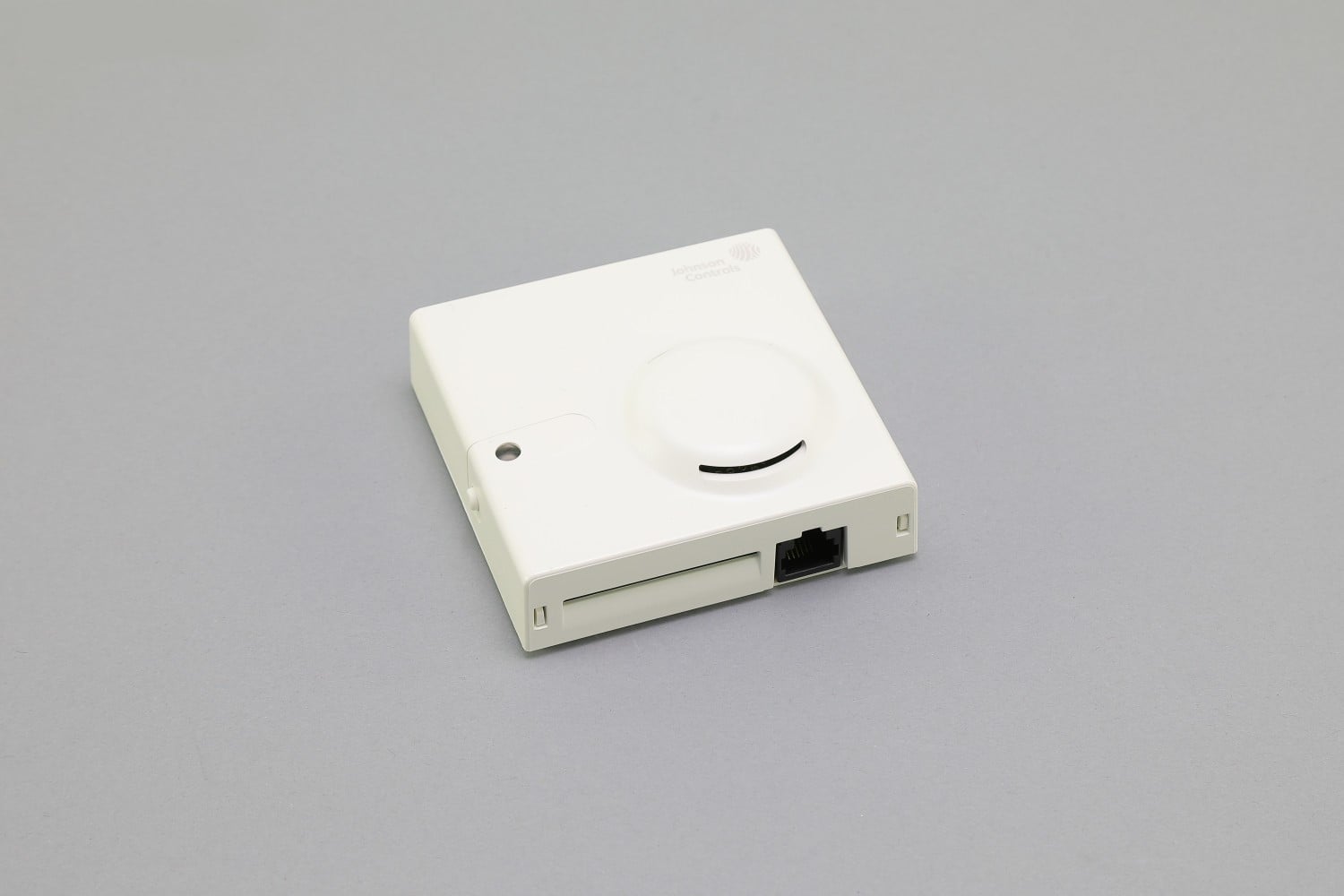

TE-68NP-0N00S Johnson Controls Temperature Sensor

Overview

The Johnson Controls TE-68NP-0N00S is a precision temperature sensor engineered for room wall mount applications within building automation and HVAC control systems. It utilizes a 1K Ohm nickel resistive sensing element to deliver accurate and stable temperature data essential for efficient building management. Designed for seamless integration with platforms like Metasys, it features a modular phone jack connection that simplifies installation and maintenance.

Features

• 1K Ohm nickel resistive sensing element provides accurate temperature measurement.
• Modular phone jack connection allows for fast, reliable field wiring and easy replacement.
• Room wall mount design with a white thermoplastic designer-style housing.
• Built-in Zone Bus access port enables technicians to commission or service the controller directly through the sensor.
• DIP switches allow the enablement or disablement of specific unit functions.
• Integrated manual override pushbutton and occupancy LED indicator support advanced space management.

Specifications

• Sensing Element: 1K Ohm Nickel RTD
• Operating Temperature Range: 32 to 131°F (0 to 55°C)
• Ambient Storage Conditions: -40 to 140°F, 5 to 95% RH non-condensing
• Sensor Accuracy: +/- 0.34°F at 70°F
• Connection Type: 6-pin Modular Jack (Phone Jack)
• Mounting: Wall mount
• Housing Material: White Thermoplastic

Applications

• Commercial HVAC air handling unit (AHU) and zone temperature monitoring.
• Building automation (BAS) and Direct Digital Control (DDC) systems.
• Indoor room and classroom temperature sensing for space comfort optimization.
• Energy management and supervisory control configurations.
