Overview

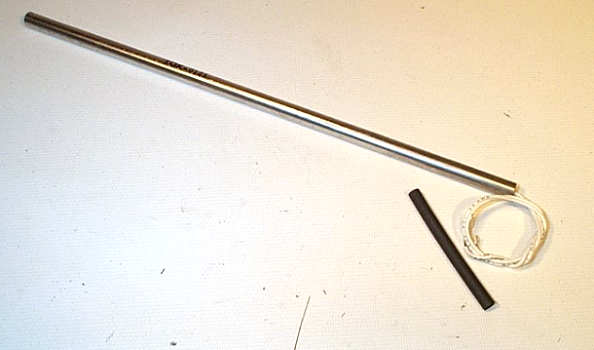

The Johnson Controls TE-6300-601 is a high-precision, passive resistance-output temperature sensor element designed for dependable thermal tracking within commercial and industrial HVAC systems. Featuring stable thin-film nickel technology and an 8-inch insertion length, this probe delivers accurate data transmission to Building Automation Systems (BAS) and Direct Digital Control (DDC) platforms. It serves as a reliable replacement element that integrates seamlessly with existing TE-6300 series enclosures and sensor holders, offering an economical solution for critical temperature monitoring.
Features
- High-precision 1k ohm nickel sensing element for high-resolution tracking.
- Durable 8-inch nickel-plated probe construction for corrosion resistance.
- Extended length helps position the element in the center of airflow, minimizing duct wall stratification.
- Passive resistance output eliminates the need for external power at the sensing point.
- Seamless integration with existing TE-6300 series conduit boxes and holders.
Specifications
- Sensor Element: 1k ohm thin-film nickel
- Reference Resistance: 1000 ohms at 70 F (21 C)
- Sensitivity: Approximately 3 ohms per degree Fahrenheit (5.4 ohms per degree Celsius)
- Accuracy: +/- 0.34 F at 70 F (+/- 0.19 C at 21 C)
- Probe Length: 8 inches (203 mm)
- Probe Diameter: 0.25 inches (6.4 mm)
- Temperature Sensing Range: -50 F to 250 F (-46 C to 121 C)
- Wiring: 2-wire, passive output with 22 AWG lead wires
Applications
- Duct and pipe temperature sensing in commercial building automation systems.
- Integration into Direct Digital Control (DDC) and Building Automation System (BAS) platforms.
- Mid-season retrofits and routine sensor replacements in complex duct arrays.
- Industrial process temperature measurement and commercial HVAC system monitoring.
