T-4002-122 Johnson Controls Connector

Overview

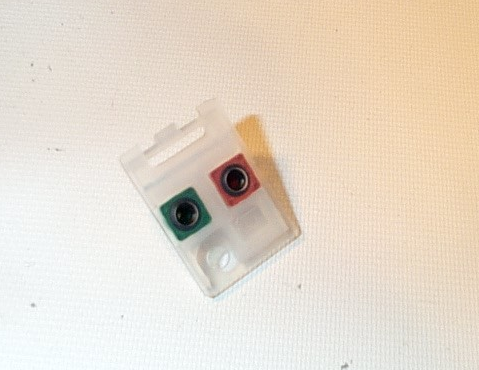

The Johnson Controls T-4002-122 is a terminal connector designed for use with T-4000 Series pneumatic room thermostats, specifically high-volume output models. This 2-pipe component facilitates a secure and efficient interface between the thermostat and the pneumatic distribution system. It features two straight fittings that allow for a quick plug-in connection to standard 5/32 inch O.D. polyethylene tubing, ensuring reliable air transmission for temperature control applications.

Features

• Dual straight fittings for streamlined 2-pipe configurations
• Plug-in design for rapid and secure tubing installation
• Specifically engineered for compatibility with high-volume output T-4002 series thermostats
• Durable construction suitable for commercial and industrial HVAC environments
• Designed to minimize air leakage and maintain system pressure integrity

Specifications

• Brand: Johnson Controls
• Model Number: T-4002-122
• Connection Type: Two straight fittings
• Tubing Compatibility: 5/32 in. O.D. polyethylene tubing
• Product Series: T-4000 Series Accessories
• Packaging Requirement: Must be ordered in multiples of ten
• Weight: Approximately 0.1 lbs

Applications

The T-4002-122 terminal connector is used in pneumatic temperature control systems within commercial, institutional, and industrial buildings. It is an essential component for installing or maintaining T-4002 series high-volume pneumatic thermostats, which are commonly found in schools, hospitals, and office complexes. It is ideal for 2-pipe pneumatic control loops where straight-line tubing connections are required for optimal space temperature management.
